2024 Agusta AW119Kx
| Overview | |
|
Immediate availability (factory deliveries not available until late 2025) VIP 6 seat interior (3 fwd / 3 aft) Soundproofing / Floor carpeting Air conditioning 230 US Gallon fuel system Baggage compartment extension |
|
| Price: | Contact Seller |
| Offered By: | Southern Cross Aviation LLC |
| Registration: | N694SH |
| S/N: | 15016 |
| Location: |
Ft. Lauderdale, Florida United States
|
| Days Active: | 287 days ago |
| Airframe | |
|
Aluminium alloy and bonded panel fuselage Semi-monocoque aluminium alloy tail boom Reinforced skid type landing gear - black colour Two (2) hinged jettisonable crew doors (LH and RH) Two (2) sliding passenger doors (LH and RH), 1.10 m opening, with jettisonable windows Passenger short foot step (LH and RH) Polycarbonate windshield and side azure coloured windows Overhead cockpit azure coloured windows Lower cockpit azure coloured windows Removable composite tail rotor gearbox fairing Quick removable tail rotor drive shaft cover Separate baggage compartment with hinged door Three (3) jacking points Removable fairing and cowlings, for complete accessibility to the controls and drive components Quick opening hinged inspection doors, to allow visual check of engine oil levels and maintenance inspection points Grounding point |
|
| Total Time: | 15.5 Hours |
| Landing Cycles: | 64 |
| Avionics | |
|

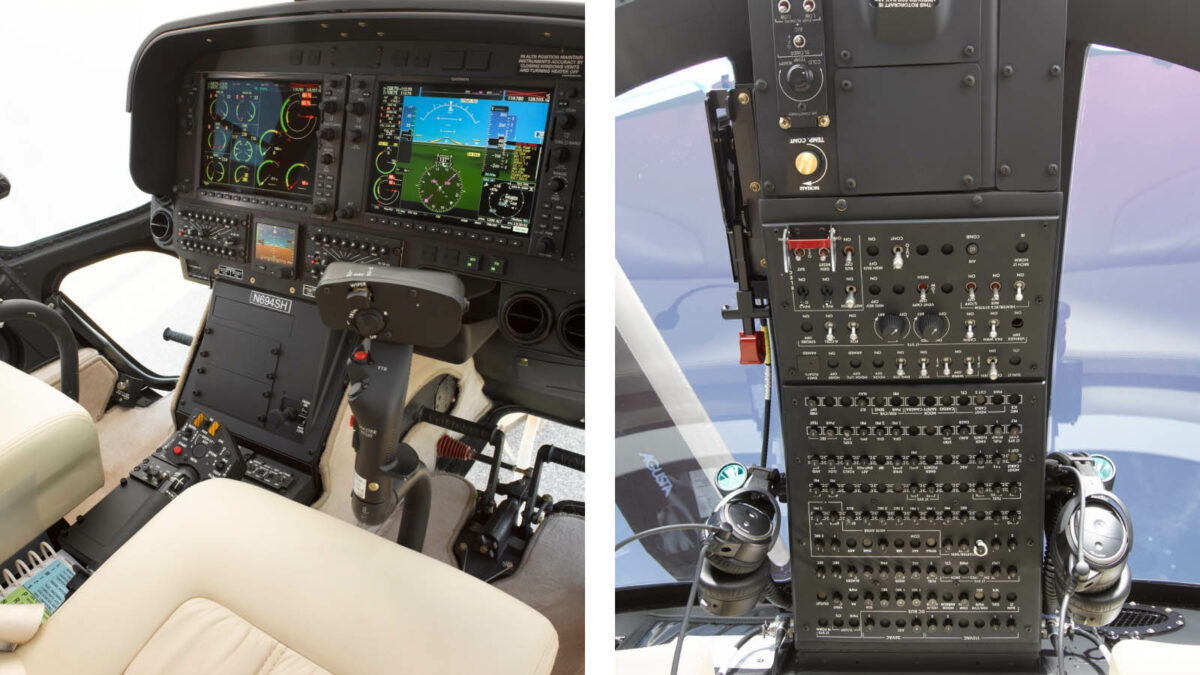

Garmin G1000NXi Integrated Flight Deck system comprising: Two (2) GDU-1050H display units providing a Primary Flight Display (PFD) and a Multifunction Display (MFD) and integrating: Flight Management System (FMS) Synthetic Vision System (SVS) Helicopter Terrain Awareness and Warning System (HTAWS) Radio tuning controls Two (2) GEA-71BH Aircraft Interface Unit GRS-7800 AHRS GDC-72H Air Data Computer (ADC) Two GIA-64H Integrated Avionics Units (IAU) comprising: COM 1&2 NAV 1&2 GPS 1&2 Aural Alert Generator Transponder GTX-345R Mode-S/ADS-B dual mode 1090 Extended Squitter (ES) ADS-B Out plus 1090 and 978 ADS-B In compliant position source (WAAS/GPS) Airframe Hour meter Central Maintenance Computer (CMC) data logging Radar Altimeter GRA-55 Digital Audio Control System (DACS) COBHAM with two (2) cockpit panels Magnetic Compass indicator L3 Avionics System EFD 750 Electronic Standby Indicator |
|
| Additional Equipment | |
|
Baggage compartment extension (1.9 m): It may be affected by avionic customization Dual controls Fuel cap with key-lock Reinforced windshields (pilot and co-pilot) Rotor brake Sliding windows on cockpit doors Windshield wipers (pilot and co-pilot) with wiper switch on cyclic grips Hourmeter (engine run-time) Pulsed chip detectors: In lieu of quick disconnecting chip detectors. |
|
| Engines | |
|
Pratt & Whitney Canada PT6B-37A turbo-shaft engine Engine mounted fuel pump and filter assembly Engine mounted oil pump and filter assembly Engine mounted fuel control and governor Electronic Engine Control (EEC) Lubrication and cooling system One (1) engine oil chip detector Engine mounted fuel heater Fuel system control panel 3-cell crash-resistant fuel system Submerged fuel pumps (two [2] boost and one [1] transfer pump) RH refuelling point |
|
| Engine 1 Hours: | 15.5 SNEW |
| Engine 2 Hours: | 15.5 SNEW |
| Interior & Exterior | |
|
INTERIOR ARRANGEMENT Pilot and co-pilot seats, fore and aft adjustable, with lap belts and headrests Aluminium alloy honeycomb reinforced floor with anti-skid finishing Ventilation ram air inlets Anti-reflection instrument panel INTERIOR TRIM Bleed air heater Primer finished cabin walls |
|
|
EXTERIOR FINISHING Finishing in accordance with manufacturer specification Primer exterior painting PAINTING Standard painting and finishing Up to 4 colours from LHD selection painting scheme and finishing from LHD selection Registration marks and logos (decal) |
|
| Other Info | |
|
Inspection Status: US C of A issued June 24, 2024 Warranty Commencement Date June 24, 2024 Warranty Expiration Date June 23, 2027 (or 2,000 Hours) |
|
| Damage: | No known current or historical damage |
| Brochure: | View Brochure |
