2015 Sikorsky S-76D
| Overview | |
|
One Fortune 100 Owner Engines enrolled on ESP Gold Deluxe VIP Executive 6 Passenger Interior C4 Environmental System Emergency Flotation System Fresh 100 Hour Inspection |
|
| Price: |
$4,995,000 USD
|
| Offered By: | Guardian Jet LLC |
| Registration: | N780P |
| S/N: | 761030 |
| Location: |
Guilford, Connecticut United States
|
| Days Active: | 238 days ago |
| Airframe | |
| LANDINGS: 6,993 | |
| Total Time: | 1,835 Hours |
| Avionics | |
|
Thales TopDeck Version 402.3 COMM: Dual Collins VHF-4000 NAV: Dual Collins Proline 21 NAV 4000 & NAV 4500 w/ VOR Radio Mgmt System: Dual ARINC 739 MCDU w/ RMS Interface & FMS Interface PFD: Dual Pilot Flight Displays MFD: Dual Multi-Function Displays AHRS: Dual Litef LCR 100 AHRS Processors Radio Altimeter: Thales Single Radio Altimeter Receiver/Transmitter Weather Radar: Honeywell Primus 880 Transponder: Dual Rockwell CollinsTDR-94D w/ Mode S w/ ADS-B Out DME: Dual Rockwell Collins DME-4000 GPS: Dual GPS Receivers Flight Director: Thales Auto Pilot: Thales Air Data Computer: Dual ADU3200 FMS: Thales Flight Management System IESI: Thales Integrated Electronic Standby Instrument ELT: Artex ELT C406-NHM 406 w/ Nav Interface CVFDR: Universal Combined FDR & CVR (120 Min of Voice & 25 Hrs Data) TCAS: Bendix/King KTA-970 TCAS I EGPWS: Honeywell Mk XXII EGPWS |
|
| Additional Equipment | |
|
Digital Moving Map onThales Multifunction Displays (DMAP) True North SATCOM Cabin Phone Dukane DK-120/90 Underwater Locator Dual Wulfsburg Audio Panel Davtron Digital Clock C4 Environmental System Whelen Strobes Left & Right Fixed LED Landing Lights Cabin ICS Pulselite System Electric Door Locks Emergency Flotation Cabin Briefing System Cabin Paging/Chime System M/R Recognition Light LED Logo Lights Hinged Fuel Caps Manual Rotor Brake System Engine Wash Fittings Retractable Boarding Step System Heated Windshields / Windshield Wiper System Sun Tint Windshield & Tinted Cabin Windows LED Search Light AVCS System Acoustic Noise Reduction 3P Bifilar Vibration Suppression System Helicopter Emergency Egress Lighting System (HEELS) CAPABILITIES: TCAS FDCVR XM Weather Emergency Floats EGPWS FMS ADS-B Out Version 2 |
|
| Engines | |
|
ENGINES: (2) Pratt & Whitney PW210S Engines ENGINE 1 TIME: 4,187 cycles (Installed on July 14th, 2020) ENGINE 2 TIME: 1,835 hours 6,993 cycles QUIET MAIN ROTOR GEAR BOX: 1,835 hours INTERMEDIATE GEAR BOX: 1,835 hours TAIL ROTOR GEAR BOX: 1,835 hours |
|
| Engine Hours: | 1,280 SNEW |
| Interior & Exterior | |
|

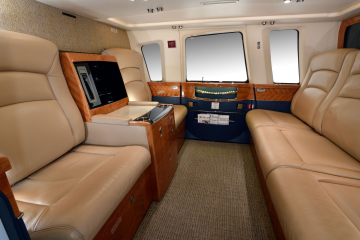

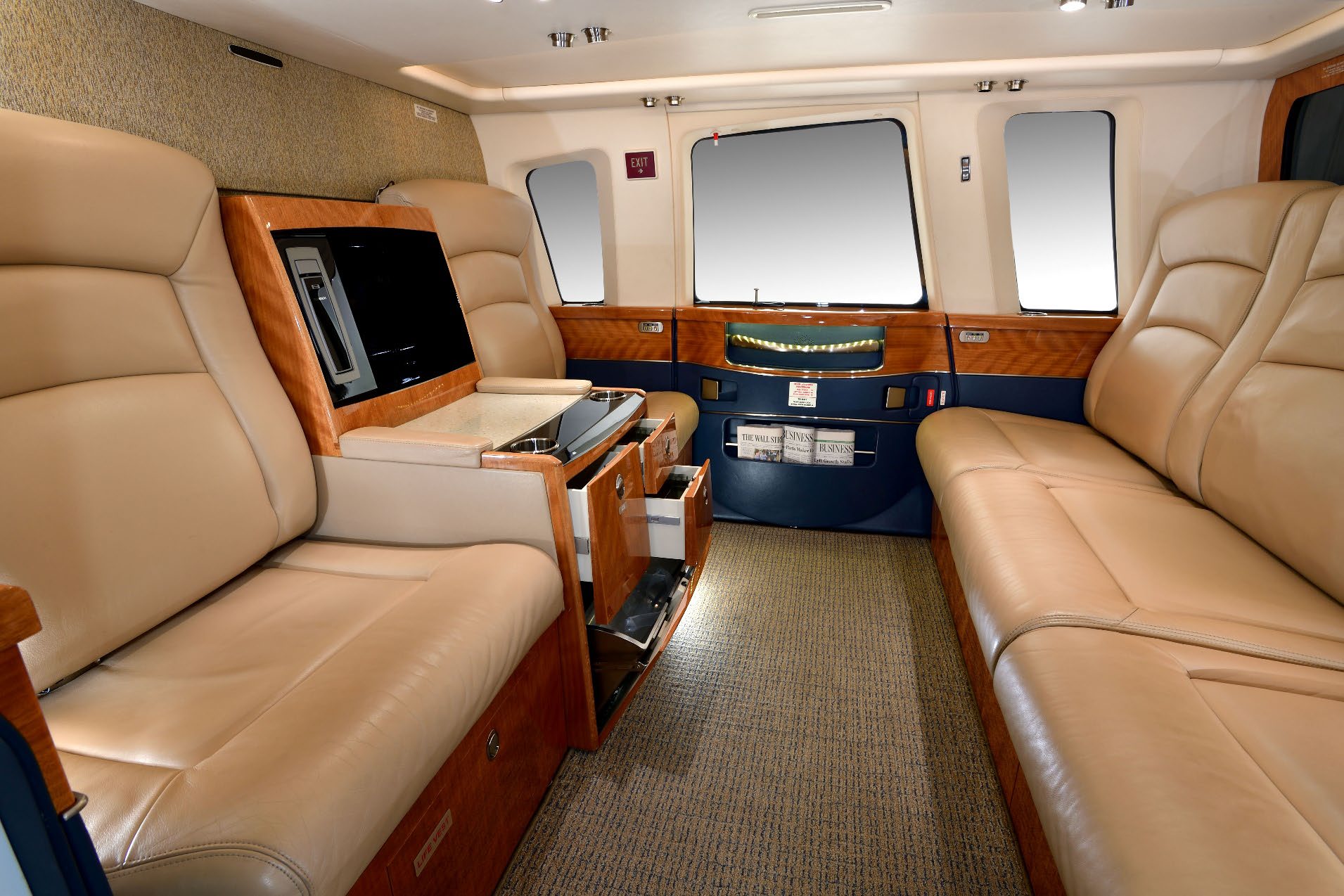

(Original 2015 at Sikorsky Heliplex Coatesville, PA) Elegantly appointed and extremely well-maintained deluxe VIP 6 passenger configured cabin with 4 aft-facing bench seats, 2 forward facing club seats, with storage cabinet between forward facing seats. |
|
| Year Interior: | 2015 |
|
(Painted in 2015 at Sikorsky Coatesville, PA) Matterhorn White with Royal Blue, Special Blue, Light Blue, Nordic Gray, Phantom Gray |
|
| Year Painted: | 2015 |
| Other Info | |
|
Inspection Status: Year of Manufacture: 2013 In-Service: 2015 Engines enrolled on ESP Gold CAMP Maintenance Tracking INSPECTIONS LAST COMPLETED NEXT DUE 100 Hour Inspection 1,835 hours 1,935 hours 300 Hour Inspection 1,655 hours 1,955 hours 600 Hour Inspection 1,655 hours 2,225 hours 1250 Hour Inspection 1,408 hours 2,659 hours 1500 Hour Inspection 1,408 hours 2,908 hours 12 Month Inspection Sep 2023 Sep 2024 24 Months Inspection Sep 2022 Sep 2024 36 Months Inspection Sep 2023 Sep 2026 |
|
| Brochure: | View Brochure |
