2014 CubCrafters Carbon Cub
| Overview | |
|

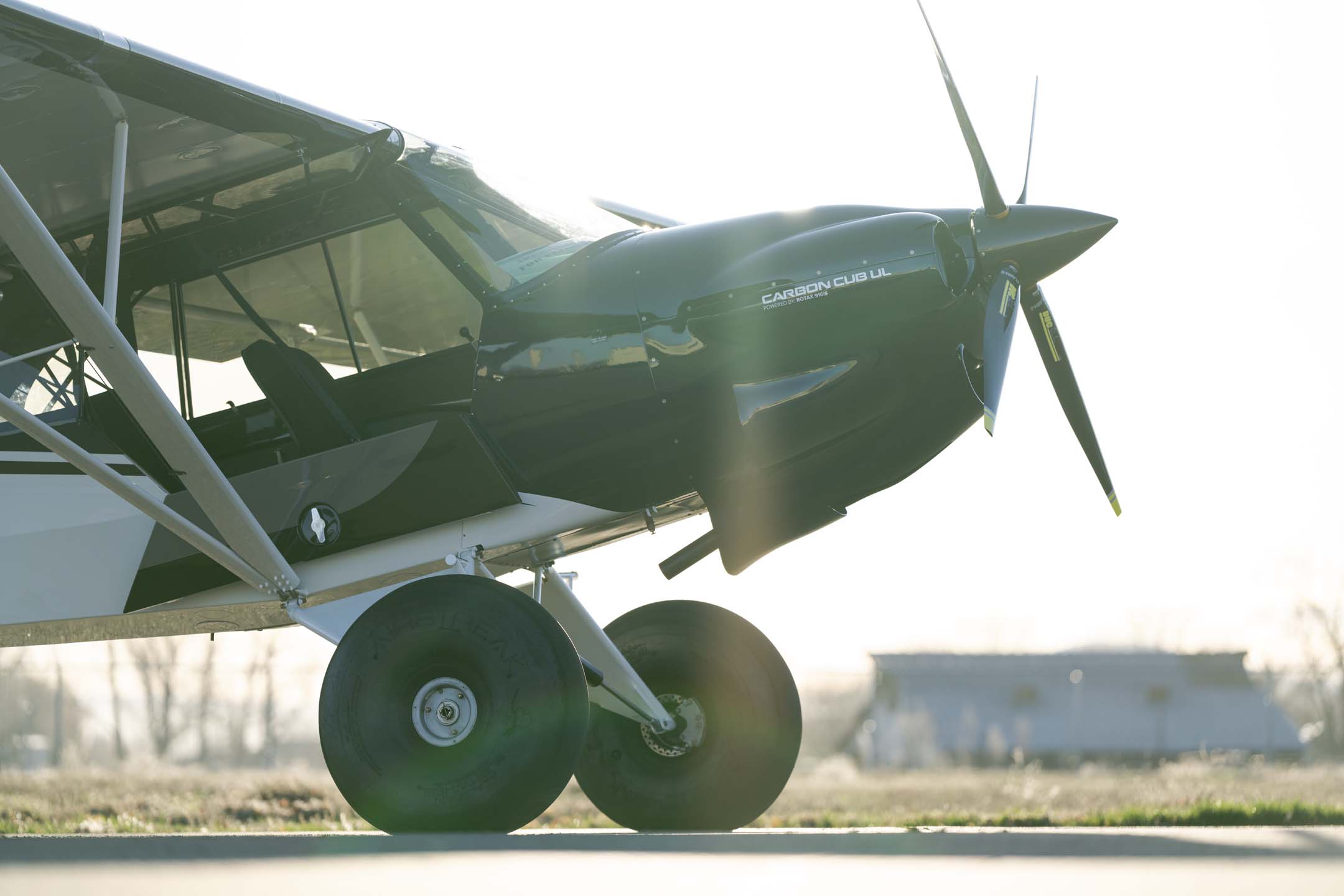

N6137R – Where Innovation Takes Flight—The First Rotax 916iS Equipped Carbon Cub This is your opportunity to own a true piece of aviation history. This aircraft is the first flying Rotax 916iS in the world and the very first Cub to feature this groundbreaking engine, complete with full FADEC controls. The Rotax 916iS delivers an impressive 160 horsepower with a turbocharger, offering exceptional performance across all altitudes. Even better, it runs on both Avgas and MoGas, giving you flexible fuel options wherever you fly. As an Carbon Cub, it’s built for fun and freedom. If you have your PPL (or above), the aircraft has almost 900 lbs. of useful load in the Experimental category! Designed with the backcountry in mind, it comes with 29” Airstreak Tundra Tires, Grove wheels and double-puck brakes, and the sought-after 3X3 extended landing gear with ACME Black Ops suspension. A convenient baggage compartment door adds utility for your gear and adventures. This aircraft is equipped with a DUC 4-blade ground-adjustable composite propeller, maximizing efficiency and power delivery. The panel includes a Garmin G3X 6” landscape display, Garmin Comm Radio, Garmin Autopilot, and Garmin Transponder with ADS-B —a top-tier avionics suite for both safety and convenience. This is more than just an airplane—it’s a one-of-a-kind innovation, ready to go wherever you take it. |
|
| Price: |
$320,000 USD
|
| Offered By: | Cub Crafters Inc. |
| Registration: | N6137R |
| S/N: | CC11-00333 |
| Home Airport: | KYKM (Airnav) |
| Location: |
Yakima, Washington United States
|
| Days Active: | Today |
| Airframe | |
|
Fuel Capacity: 24 Gallons (two 12 gallon wing tanks) Empty Weight: 989 lbs. Gross Weight: Up to 1865 lbs. (experimental category with PPL) Complete 4130 reinforced fuselage tested to 1,865 lbs (40% higher than LSA requirements) Carbon fiber components E-LSA Certificate of Airworthiness |
|
| Total Time: | 694.5 Hours |
| Avionics | |
|
Garmin G3X Avionics (6” landscape display) Full flight instruments (airspeed, altitude, vertical speed, directional gyro, inclinometer, etc.) Attitude indicator w/full synthetic vision GPS mapping w/North America database Garmin Comm Radio Garmin Autopilot Garmin transponder w/ADS-B RS Flight Systems EMU including: Tachometer Manifold pressure CHT (water) temp Oil temperature and pressure EGT’s Full engine monitoring and annunciations Lane A/B Status Lights |
|
| Additional Equipment | |
|
FIREWALL FORWARD Rotax 916iS Engine DUC 4 blade ground adjustable composite propeller Dynamic prop balancing Spin-On Oil Filter Dual Generator Dual Electronic Ignition Ignition backup battery system Iridium spark plugs FUEL SYSTEM Two 12 gallon wing tanks (24 gallon capacity) Fuel selector valve (Left, Right, Off) Dual Fuel Pumps Fuel sight gauge in wing roots Fuel filter and drain WINGS & TAIL Super Cub airfoil – USA35(B) Wings tested to 1,865 lbs (40% higher than LSA requirements) Flaps – Three positions: 15°/30°/50° Vortex generators Aerodynamically balanced tail feathers FLIGHT CONTROLS & INTERIOR Dual flight controls Elevator trim Dual toe brakes Pilot push-to-talk in control stick Co-pilot push-to-talk in wing root Pilot & co-pilot standard headset jacks in wing root Powered ANR headset jacks in wing root (LEMO) Adjustable front seat Stow-away rear seat Lap belt and inertia reel shoulder harnesses Compass “Ballistic nylon” cloth seat cushions and covers Full floorboards Cabin heat control Improved Cabin Heat System Circuit breakers Master switch Avionics master switch 12V auxiliary outlet Flat Black Glare Shield Dual swing-out windows Tinted windows and skylight Rosen Sun Visor Cabin fresh air vents Rear cabin cargo tie down points Extended baggage with external baggage door Cup/Bottle holder for pilot LANDING GEAR Grove wheels, double puck brake calipers, & rotors 29” Airstreak Tundra Tires 3X3 Extended Landing Gear ACME Balack Ops Suspension Parking brake 3200 Type Tailwheel & Steel Tailspring Non-skid pilot step CARBON FIBER / COMPOSITES Cowling, Boot Cowl & Spinner Interior panels Floorboards and front seat base Pilot Seat Wingtips Aft upper baggage compartment SAFETY FEATURES Front & rear seat inertia reel 4 point harnesses Audible stall warning horn Kannad 406 Integra ELT (Built-In GPS) Visual fuel gauges Dual-action safety fuel selector valve Complete 4130 reinforced fuselage Ignition backup battery system |
|
| Engines & Props | |
|
Engine: Rotax 916iS Prop: DUC 4 blade ground adjustable composite propeller |
|
| Engine Hours: | 198.6 SNEW |
| Interior & Exterior | |
| Interior Rating: 9 | |
| Exterior Rating: 9 | |
| Other Info | |
|
Inspection Status: Last Annual: Fresh Annual included at Sale |
|
| Special Type: | Experimental |
