2013 Piper Meridian
| Overview | |||
|
BEAUTIFUL, LOW TIME 2013 G1000NXi MERIDIAN AIRFRAME & ENGINE TTSN: 1,135 HOURS 5-BLADE PROP INSTALLED JANUARY 2024 PROPELLER TOTAL TIME SINCE NEW: 121 HOURS PIPER SERVICE CENTER MAINTAINED FLIGHTSTREAM 510 AEROMECH RVSM STC DUAL TRANSPONDERS (335R/345R) MID-CONTINENT MD302 STANDBY ATTITUDE MODULE FOLD DOWN CREW & MIDDLE SEATS NO KNOWN DAMAGE HISTORY |
|||
| Price: | Contact Seller | ||
| Offered By: | Duncan Aviation | ||
| Registration: | N555GP | ||
| S/N: | 4697534 | ||
| Location: |
Sharon, Massachusetts United States
|
||
| Days Active: | 1 day ago | ||
| Airframe | |||
|
Useful Load: 1,684.75lb PIPER MERIDIAN DESCRIPTION (Per Piper Specs) Maximum Approved Altitude: 30,000 ft Range with 45-Minute Reserve: 1,000 nm Maximum Cruise Speed: 260 KTAS Useable Fuel: 170 Gallons As Equipped Useful Load: 1,684.75 Aeromech RVSM STC SA02654SE Full Deice Group with Annunciators |
|||
| Total Time: | 1,135 Hours | ||
| Avionics | |||
|

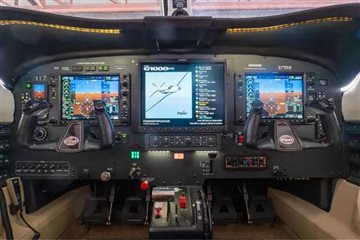

INTEGRATED FLIGHT DECK Garmin G1000NXi with Synthetic Vision PFD (Primary Flight Displays) Dual 10” Garmin G1000NXi MFD (Multi-Function Displays) 15” Garmin G1000NXi MMC (Multi-Media Card) Flight Stream 510 COMM/NAV (Communications/Navigation) Dual GIA 63W with WAAS, LPV, and GPS AP (Autopilot) GFC 700 APC (Autopilot Controller) GMC 710 FMSC (Flight Management System Controller) GCU 476 Keypad ACP (Audio Control Panels) Dual GMA 1347 ADC (Air Data Computers) Dual GDC 74A XPNDR 1 (Transponder 1) Garmin GTX335 with ADS-B and TIS-B XPNDR 2 (Transponder 2) Garmin GTX345 with ADS-B and TIS-B WX RAD (Weather Radar) GWX 68 Color Radar STORMSCOPE BF Goodrich WX500 SAT RADIO/WX DR (Weather Data Receiver) GDL69A XM RADIO Displayed on MFD SAM (Standby Attitude Module) Mid-Continent MD302 per STC SA01969SE TAS (Traffic Advisory System) Bendix King KTA870 TAWS (Terrain Awareness Warning System) TAWS-B DIGITAL CHARTS Jeppesen Chartview TES (Terminal Environment Safety) Garmin Safe Taxi HARTZELL 5-BLADE PROP INSTALLED 1/2024 Hartzell 5-Blade Prop Specifications: Hartzell 82.5” inch diameter 5-bladed, all carbon Advanced Structural Composite, Second Generation (ASC-II), swept-tip, scimitar composite blades with all new lighter-weight aluminum “Raptor®” hub propeller. 4000 hour / 6 year TBO 128.8 pounds (prop and spinner) Replaces: Hartzell – 82.5” HC-E4N-3Q/E8501B-3.5 4-bladed aluminum 4000 hours/6-year TBO 144.8 pounds (5-Blade is 128.8 pounds) Diameter: to 82.5” Max., 81.5” min ADVANTAGES (Per Hartzell Specifications): Carbon fiber construction allowing for thinner, stiffer airfoil design for better all-around performance 20% greater take-off acceleration 90 FPM better ROC at Vy 2-3 knots cruise speed increase Significantly reduced weight Measured take-off and climb noise number of 74.9 dB(a) complies with both FAR Part 36, Appendix G, and ICAO, Annex 16, Chapter 10 by a wide margin. 1.9 dB(a) reduction from standard airplane No change in RPM limitations or placards Strongest material available with field replaceable nickel steel leading edge erosion shield – no lost performance due to reduced diameter Best Warranty in the industry along with worldwide support |
|||
| Additional Equipment | |||
|
Aeromech RVSM STC SA02654SE Garmin G1000 NXi Upgrade per STC SA01947WI Flighstream 510 Mid-Continent MD302 Standby Attitude Module STC RG41/53 Upgraded Battery (New 1/2021 per STC Battery Trickle Charger Connection Plug Fold-Down Crew & Middle Row Seats LED Taxi and Landing Lights Garmin Surface Watch & Jeppesen Chartview Exceedance Warning System Crew Alerter System Turbine Inlet Plugs Stainless Steel Cowling Fasteners Relief Tube Right Storage Cabinet Upgraded H3R Halon Fire Extinguisher Compressor Wash Ring Enhanced Rosen Sun Visors AmSafe Seatbelt Airbag V23 System (PIlot & Co-Pilot Seats) Whelen Orion 600 Wingtip Strobe and Nav Lights |
|||
| Engines | |||
|

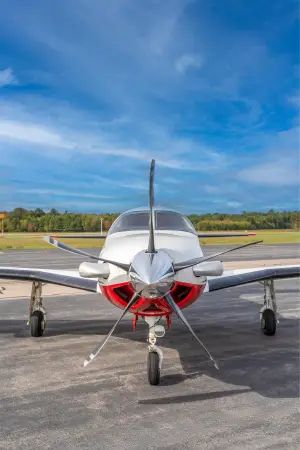

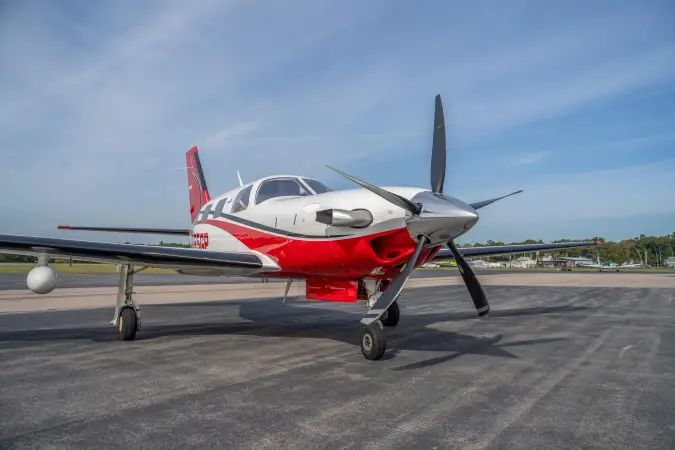

ENGINE Description Pratt & Whitney Canada PT6A-42A 500 Shaft Horsepower Serial No. PCE-RM0602 PROPELLER 5-Blade Hartzell Prop installed January 2024 Hartzell Model 5D3-N338A1/78D01B 82.5” inch diameter 5-bladed Propeller 4000 hour / 6 year TBO Serial No. SF487 Total Time Since New: 121 Hours |
|||
| Engine Hours: | 1,135 SNEW | ||
| Interior & Exterior | |||
|

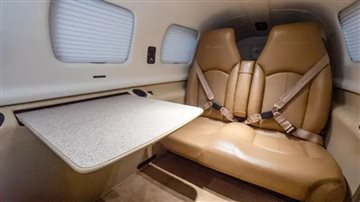

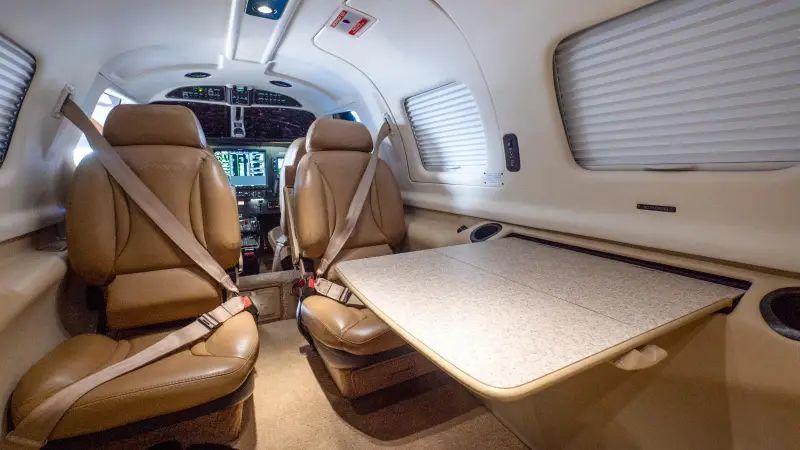

Premium Dune (Tan) Leather Interior with Coordinated Side Panels, Carpet, and Headliner. Fold-out Executive Table, Individual Reading Lights, Accent Lights, Phone/Mic/Aux Music Input Jacks. Fold Down Crew & Middle Row Seats for Easier Cockpit Access. 110V Power Plugs in Cockpit & Cabin. |
|||
|

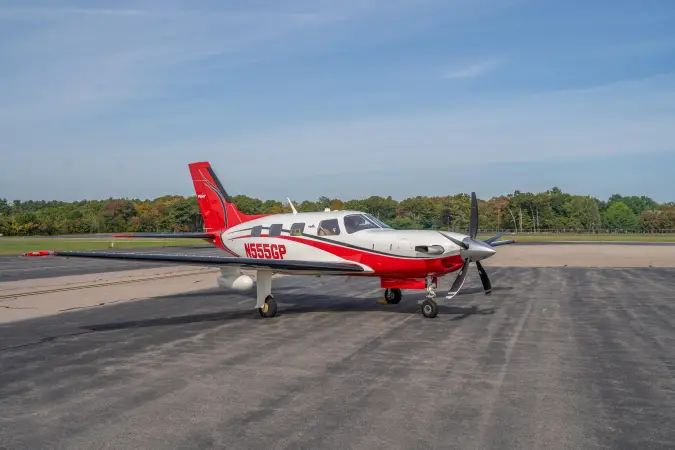

BASE COLOR Matterhorn White (P6294) TRIM COLOR 1 Ferrari Red (L5135) TRIM COLOR 2 Gloss Black (P2333) |
|||
| Other Info | |||
|
Inspection Status: Annual Inspection Completed 1/2025 at Piper Service Center New 5-Blade Prop installed 1/2024 IFR & RVSM Certifications Completed 1/2025, Next Due 1/2027 RG41/53 Upgraded Battery (Installed 1/2021) Piper Service Center Maintained |
|||
| Damage: | No known current or historical damage | ||
