2009 Bombardier Global 5000
| Overview | |
|
13-Place Interior with Forward Galley Gogo Avance L5 and Honeywell Jetwave KA Band WiFi Batch 3.4 Software Upgrade Fans 1/A+ JSSI Engine, APU, and Airframe Programs New Paint, Interior Refurb, and 180 Month Inspection Completed in 2024 |
|
| Price: |
$12,500,000 USD
|
| Offered By: | Guardian Jet LLC |
| Registration: | PT-CTA |
| S/N: | 9305 |
| Location: |
Korea, North
|
| Days Active: | 93 days ago |
| Airframe | |
| Total Time: | 7,697 Hours |
| Landing Cycles: | 2,746 |
| Avionics | |
|

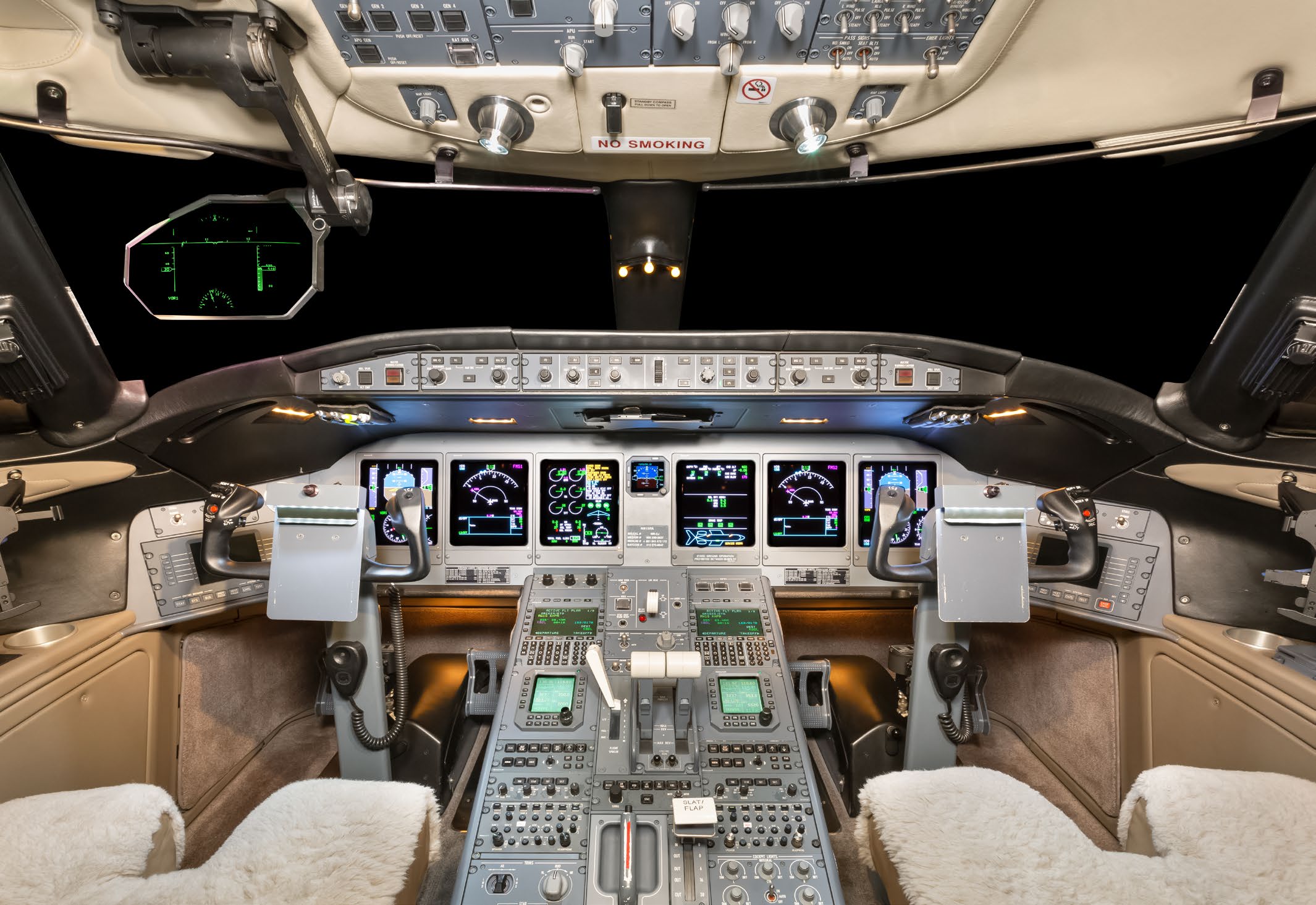

Honeywell Primus 2000 XP Avionics Suite ADC: Triple Honeywell AZ-950 Advanced Micro Air Data Computer VHF COMMUNICATION UNIT: Triple Honeywell RCZ-833M CVR: Honeywell HFR5-V Cockpit Voice Recorder EFIS: Honeywell DU-870 6-tube ELT: ACR/Artex B406-4 ELT (406 MHz) w/ 110-328-01 Blade Antenna FDR: Honeywell Solid State Flight Data Recorder FMS: Triple Honeywell CD-820 Control Display Unit GPS: Dual Honeywell Global Navigation Satellite Sensor Unit HI FREQUENCY RECEIVER: Dual Collins HF-9031A NAVIGATION RECEVIER UNIT: Dual Honeywell RNZ-851 RADIO ALTIMETER RECEIVER: Dual Collins ALT-4000 Radio Altimeter Transceiver w/SB 700-1A11-34-041 Modification-Navigation-Introduction of Bandpass Filter to the Radio Altimeter to Prevent Interference from 5G Mobile Networks Complied With. SATCOM: Collins Aerospace SRT-2100B Satcom R/T Swift Broad Band SATPHONE: Iridium Comm. ICS-100 System TCAS: ACSS RT-950 TCAS R/T WEATHER RADAR: Dual Honeywell WC-880 Radar Control Panel |
|
| Additional Equipment | |
|
ENTERTAINMENT Airshow Forward & Aft Bulkhead Monitors LED Cabin Lighting COMMUNICATIONS Honeywell Jetwave KA-Band WiFi GoGo Avance L5 WiFi Iridium Flight Phone System w/ Three Total Handsets CAPABILITIES: NAT HLA RVSM RNP Capability (RNP 1) BRNAV/VNAV WASS/LPV TAWS w/ RAAS AFIS – Satellite and VHF Based Dual FMS – NZ6.1.1 FANS 1/A+ - CPDLC LINK 2000+ Automatic Emergency Descent Mode EFIS - Electronic Checklists TCAS Version 7.1 Auto Throttles CVR FM Immunity 8.33 Spacing Mode S Transponder w/Enhanced Flight ID HUD Lightning Detection QAR |
|
| Engines | |
|
ENGINES: BR700-710A2-20 LEFT RIGHT CYCLES: 2,740 2,740 SERIAL NUMBER: 12727 12726 Engines enrolled on JSSI Essential Plus |
|
| Engine 1 Hours: | 7,697 SNEW |
| Engine 2 Hours: | 7,697 SNEW |
| Interior & Exterior | |
|

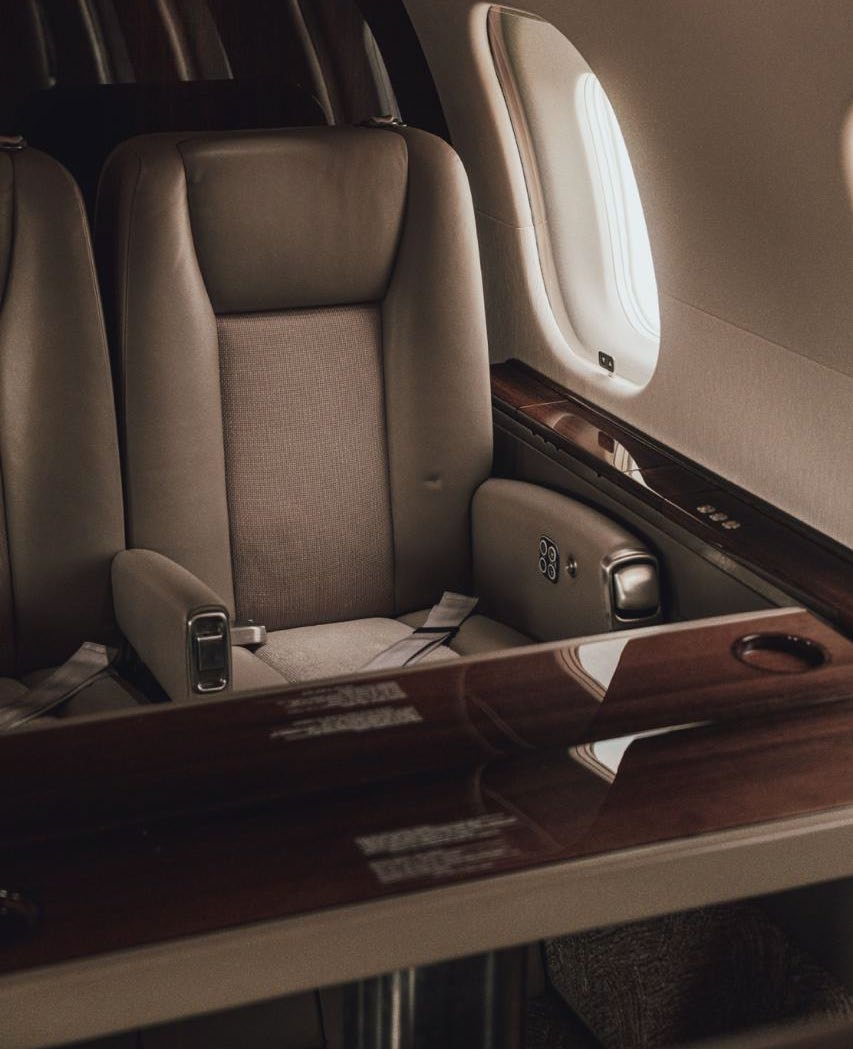

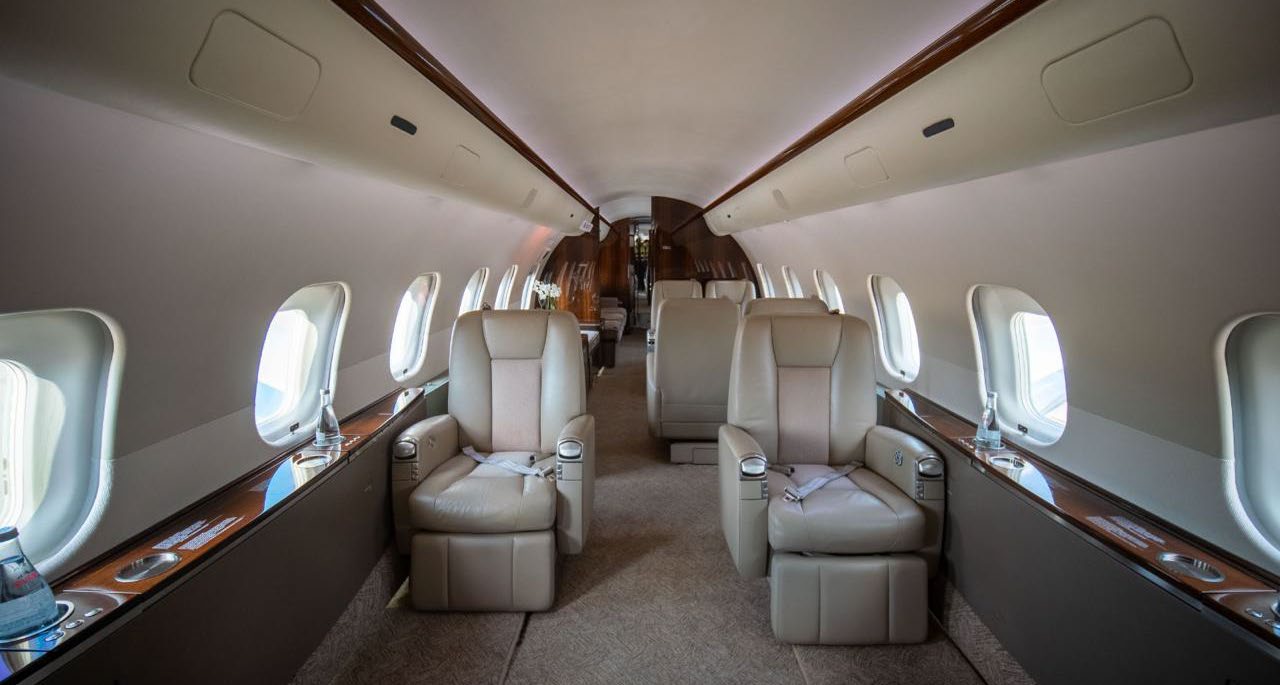

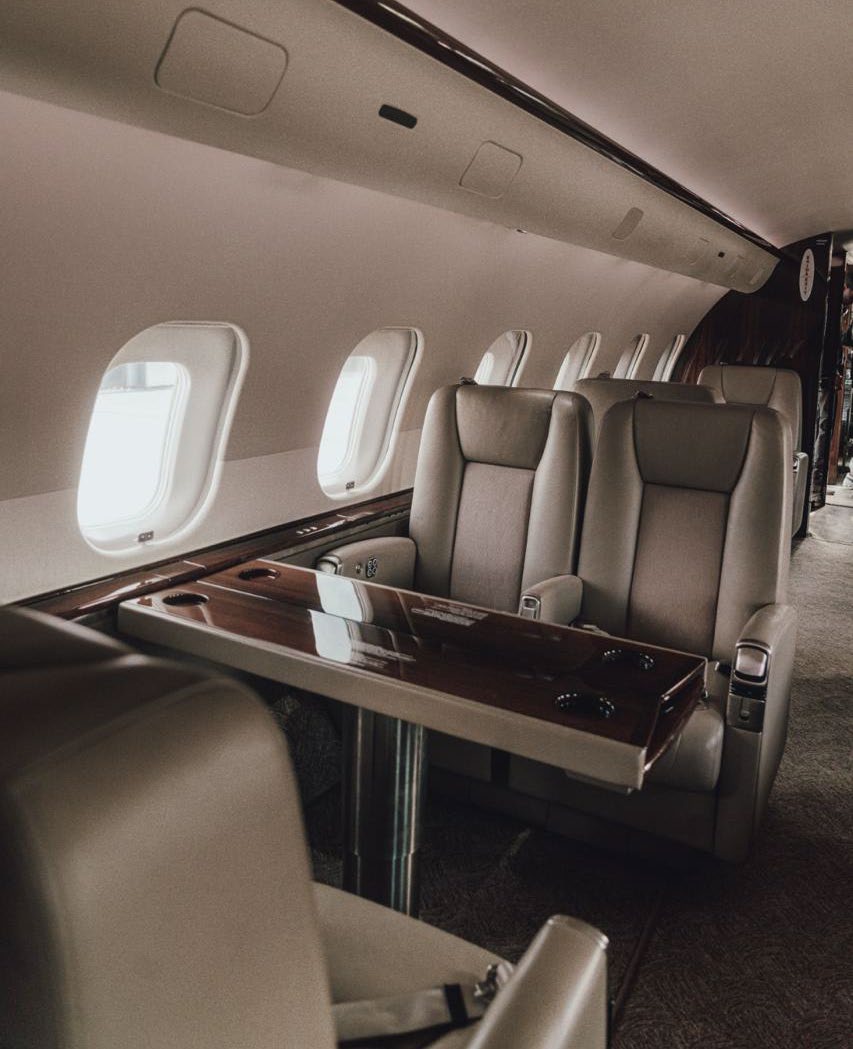

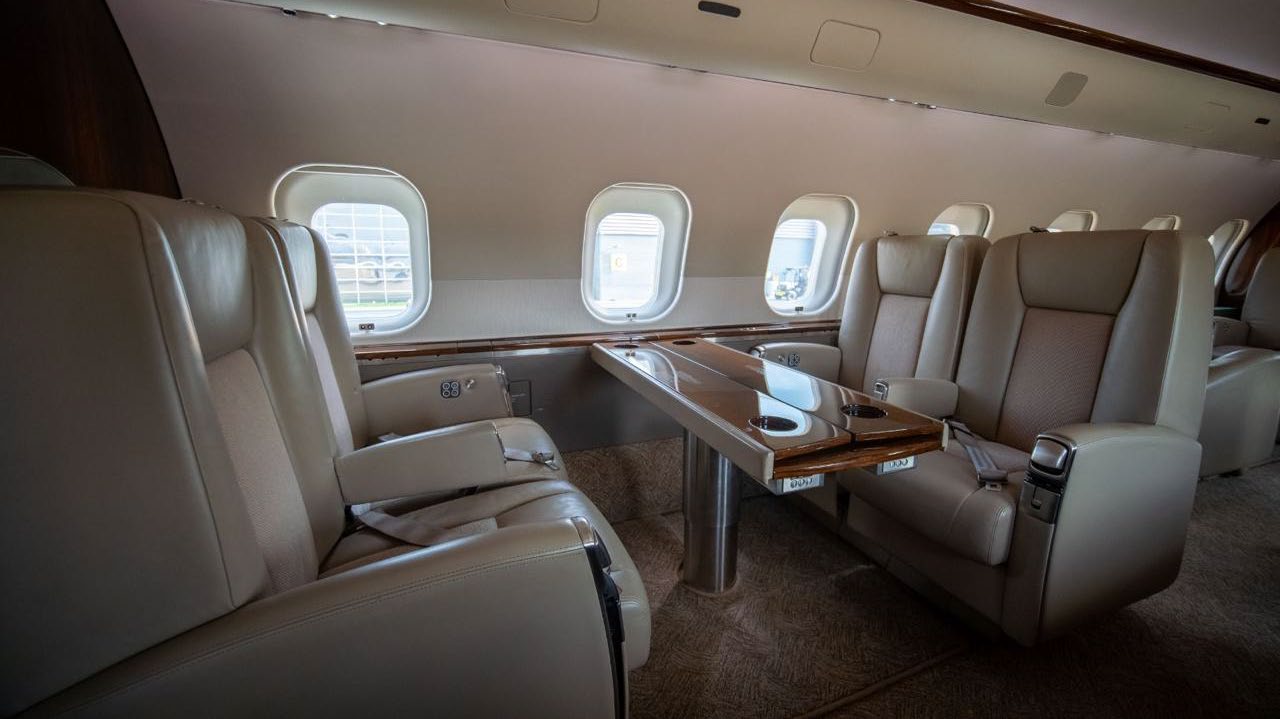

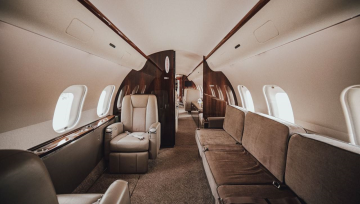

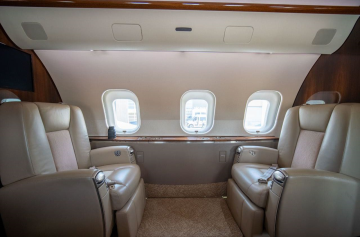

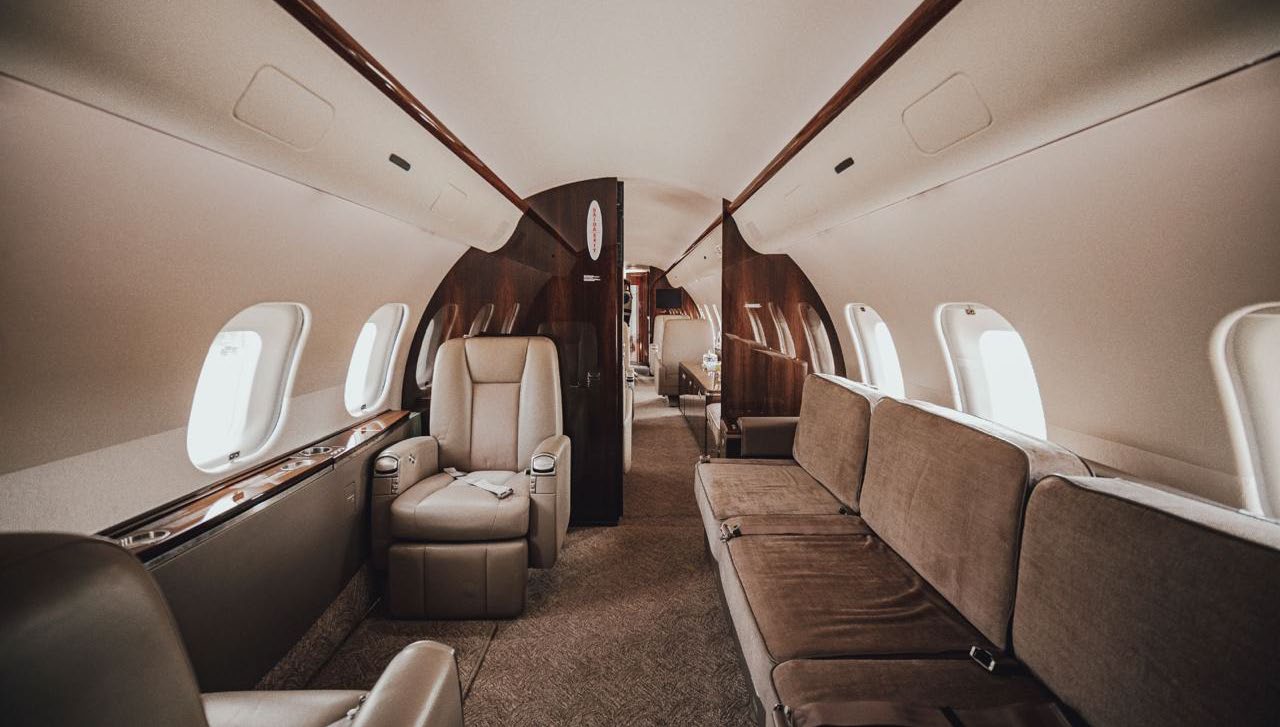

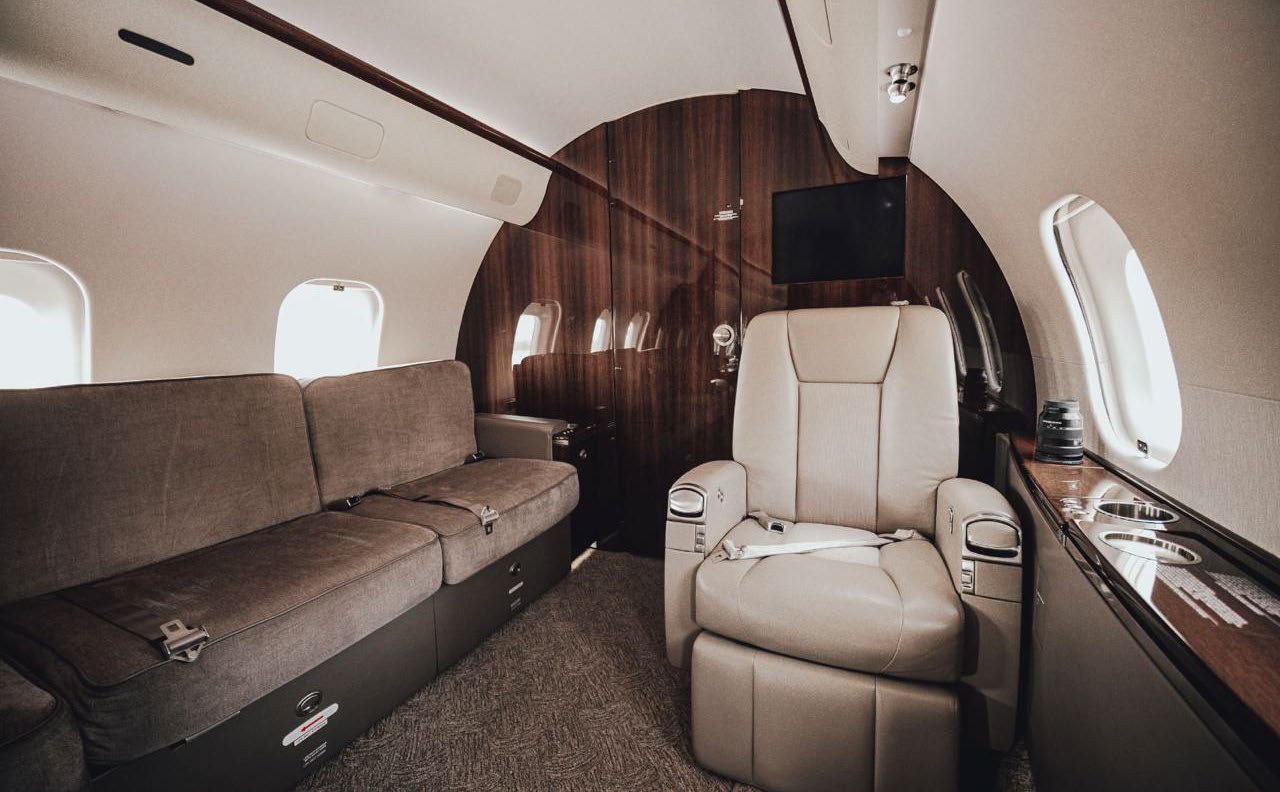

Original Interior Completion in August 2008 at Innotech Carpet Refurbished September 2020 by Aviation Completion Innovations Cockpit Crew Seats Refurbished March 2018 by Aviation Completion Innovations Forward and Aft Bulkhead, Lower and Upper Side Walls, and Carpets Completed in 2024 by F / List Thirteen (13) passenger cabin features 4-place club, followed by a 4-place conference group across from a credenza. In the aft cabin there is a 3-place berthable divan opposite a 2-place club. The forward galley is equipped with a High Temp and Microwave Oven, Food Chiller, Coffee Maker, and Espresso Machine. There are both forward and aft lavatories. |
|
| Year Interior: | 2024 |
|

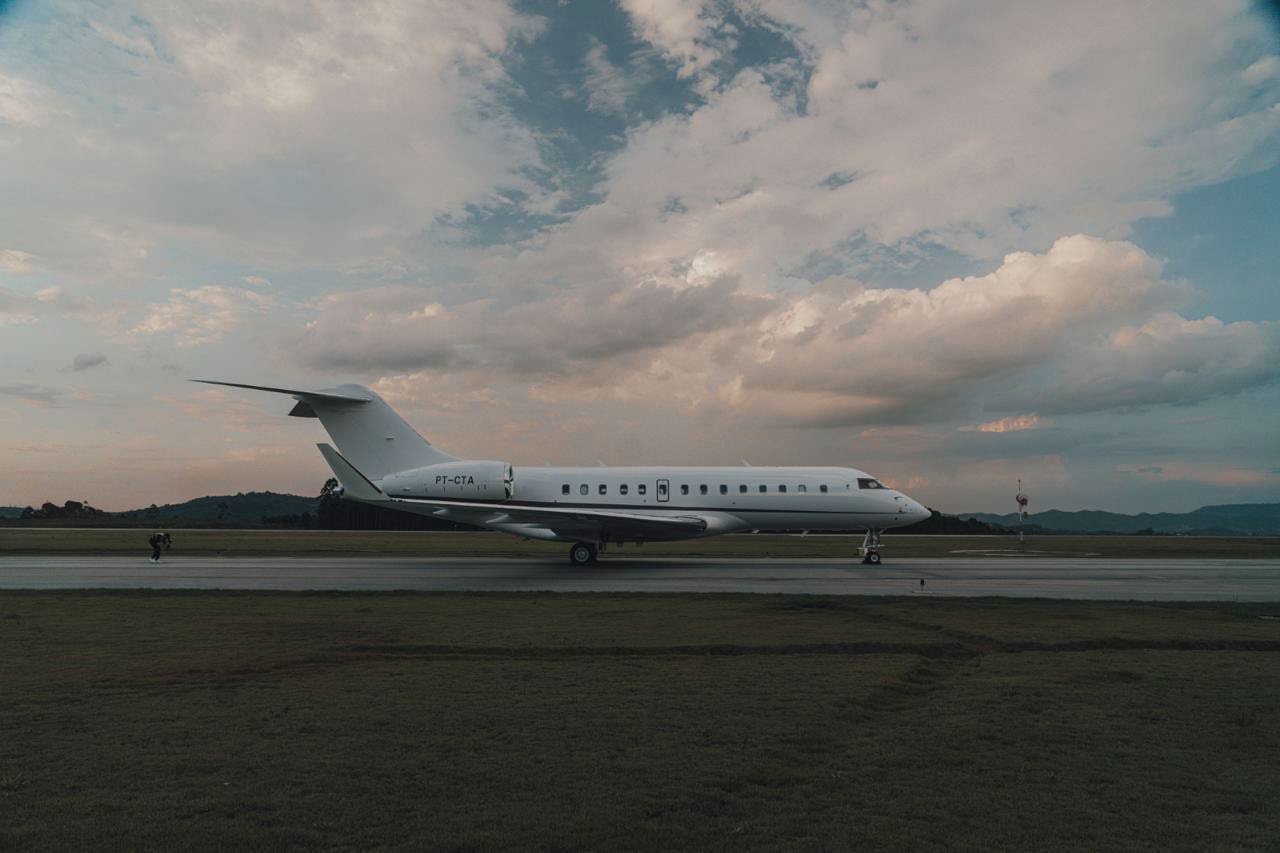

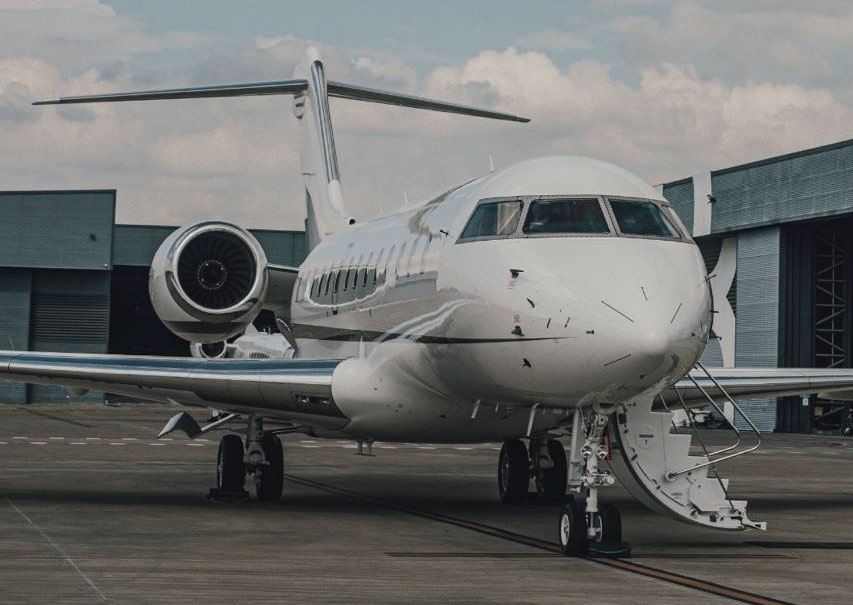

2024 Paint Matterhorn White with a Slate Gray Stripe |
|
| Year Painted: | 2024 |
| Other Info | |
|
Inspection Status: MAINTENANCE & INSPECTION STATUS BREAKDOWN Maintenance Tracking by CAMP Airframe enrolled on JSSI Program Engines enrolled on JSSI Platinum On-Condition Plus APU enrolled on JSSI APU Plus INSPECTION COMPLIED WITH NEXT DUE 15 Month Inspection Nov-2024 Feb-2026 30 Month Inspection Nov-2024 May-2027 60 Month Inspection Nov-2024 Nov-2029 120 Month Inspection Jun-2019 Jun-2029 180 Month Inspection Nov-2024 Nov-2039 |
|
| Brochure: | View Brochure |
