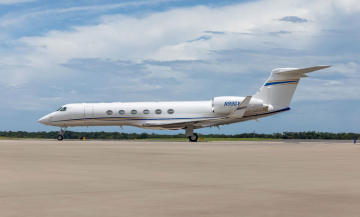

2003 Gulfstream G-V
| Overview | |
|
STARLINK Rolls Royce Corporate Care MSP Gold FANS 1/A, Synthetic Vision, EVS/HUD DU-885 Display Upgrades 2022 Paint & 2019 Interior Always Hangared |
|
| Price: |
$12,490,000 USD
Reduced by $410,000
(3.2%)
|
| Offered By: | Guardian Jet LLC |
| Registration: | N99GV |
| S/N: | 682 |
| Location: |
Guilford, Connecticut United States
|
| Days Active: | 94 days ago |
| Airframe | |
|
WEIGHT: MAX RAMP WEIGHT: 90,900 Lbs. MAX TAKE-OFF WEIGHT: 90,500 Lbs. MAX LANDING WEIGHT: 75,300 Lbs. BOW (2 Crew): 48,775 Lbs. MAX USABLE FUEL: 41,300 Lbs. EMPTY WEIGHT: 47,375 Lbs. MAX ZERO FUEL: 54,500 Lbs. ASC 64C 75,000 max operating weight accomplished |
|
| Total Time: | 7,568 Hours |
| Landing Cycles: | 3,423 |
| Avionics | |
|

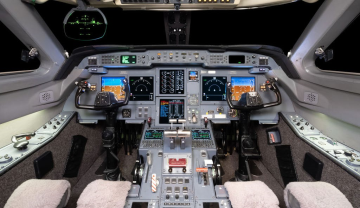

Honeywell Primus Elite Advanced System AIRBORNE FLIGHT INFORMATION SYSTEM: Honeywell AFIS Data Management System (VHF and Satellite capability) AIR DATA COMPUTER: Triple Honeywell AZ 840 Micro ADCs AUTOMATIC DIRECTION FINDER: Dual Collins ADF-462 COCKPIT VOICE RECORDER: L3 Communications FA2100 SSCVR (120 Minutes) COMMUNICATIONS: Dual Collins VHF 422C and third VHF-422D Com DISTANCE MEASURING EQUIPMENT: Dual Collins DME-442 EMERGENCY LOCATOR TRANSMITTER: Artex C406-2 ELT with Nav Interface FLIGHT DATA RECORDER: L3 Communications FA2100 SSFDR FLIGHT GUIDANCE COMPUTER: Dual Integrated Avionics Computers and Additional NZ 2000 FMS Computer FLIGHT MANAGEMENT SYSTEM: Dual Honeywell IAC FMS and single NZ-2000 6.1 with CD-830 CDUs GLOBAL POSITIONING SYSTEM: Dual Honeywell HG2021KB02 GPS Sensors HIGH FREQUENCY RADIO: Dual Collins HF 9034A Transceivers HEADS UP DISPLAY: Honeywell HUD HG200 LIGHTNING SENSOR: Honeywell LU-860 Lightning Sensor LONG RANGE NAVIGATION: Triple Honeywell Laseref IV Inertial Reference Units NAVIGATION: Dual Collins VIR-432 NAV Receivers RADIO ALTIMETER: Dual Honeywell RT-300 TERRAIN AWARENESS & WARNING SYSTEM: Honeywell Mark V EGPWS TRAFFIC COLLISION AVOIDANCE SYSTEM: Honeywell TCAS 2000 with Change 7.1 TRANSPONDER: Dual Collins TDR-94D WEATHER RADAR: Honeywell Primus WU-880 Transceiver |
|
| Additional Equipment | |
|

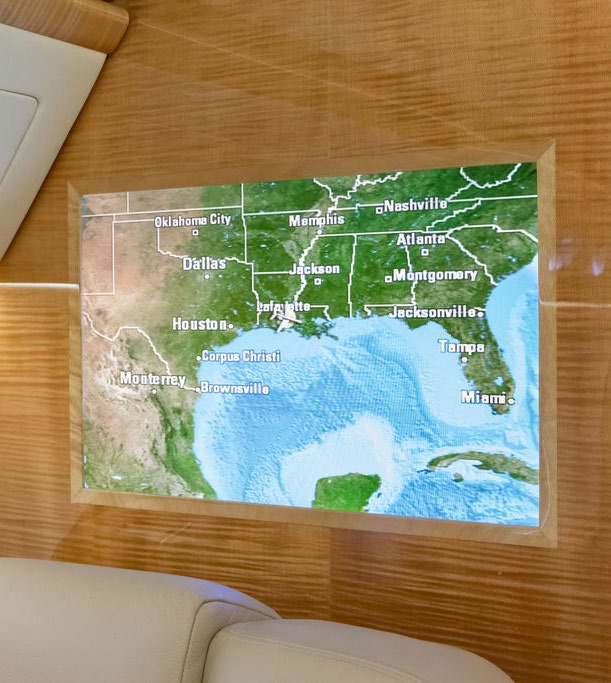

COMMUNICATIONS SpaceX Starlink Aviation System STC (ST04611CH) Magnastar Flight Phone System ENTERTAINMENT Alto Cadence Cabin Management System Airshow 4000 (3) Fwd, Mid, Aft 19-inch Rosen HD Monitors (3) External Cameras LED Cabin Lighting (Cabin, Galley, Crew Rest) CAPABILITIES: ADS-B Out TCAS 7.1 Auto Throttles RNP 4/10 HUD Enhanced Vision FANS 1/A MNPS PRNAV RVSM XM Weather Synthetic Vision FM Immunity 8.33 kHz Channel Spacing SBAS/LPV TAWS w/RAAS VNAV |
|
| Engines | |
|
ENGINES: BR 700-710A1-10 ENGINE 1 ENGINE 2 CYCLES SINCE NEW: 3,255 3,249 TIME AT LAST OVERHAUL: 3,912 3,899 DATE OF LAST OVERHAUL: 06/2011 06/2011 SERIAL NUMBER: 11481 11480 Engines enrolled on Rolls-Royce Corporate Care (On Condition) |
|
| Engine 1 Hours: | 7,217 SNEW |
| Engine 2 Hours: | 7,203 SNEW |
| Interior & Exterior | |
|

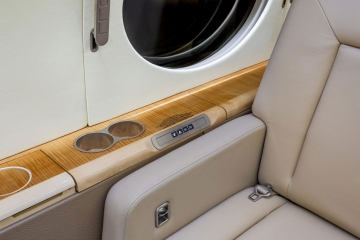

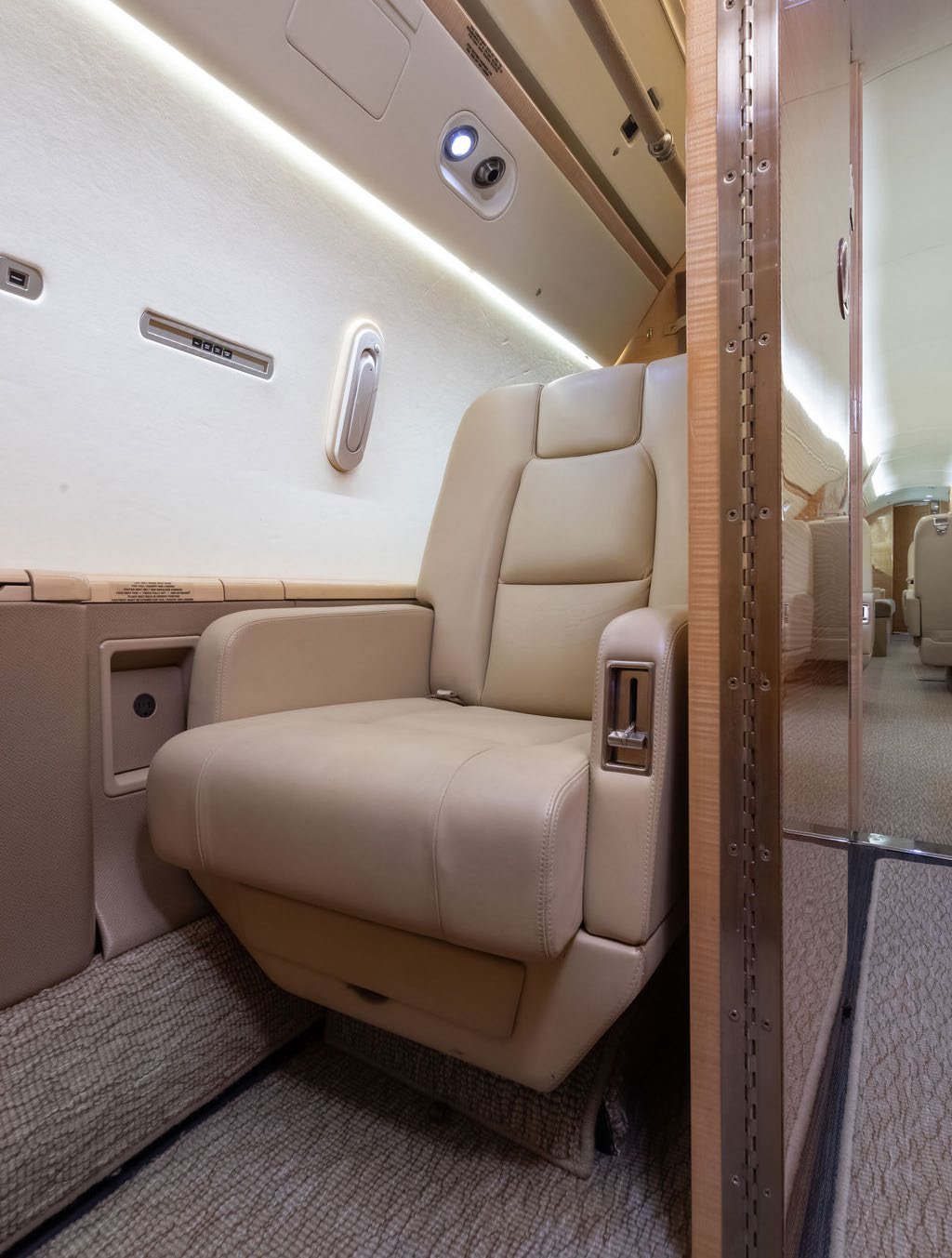

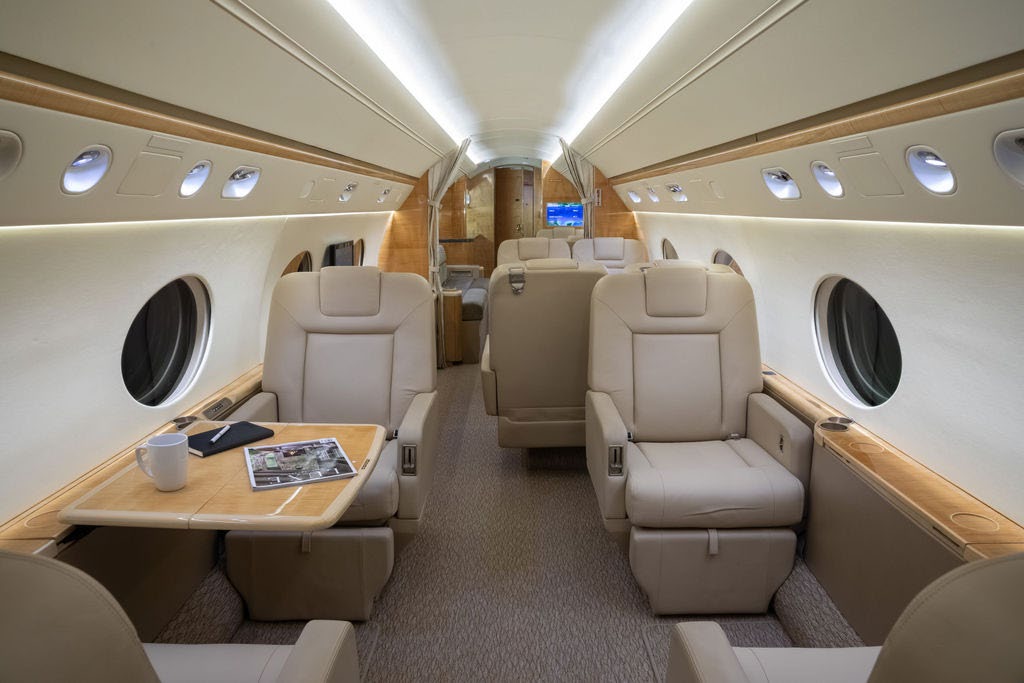

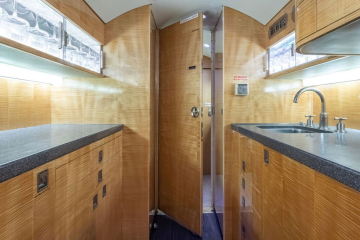

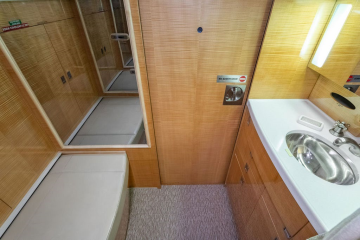

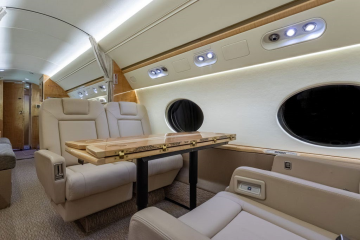

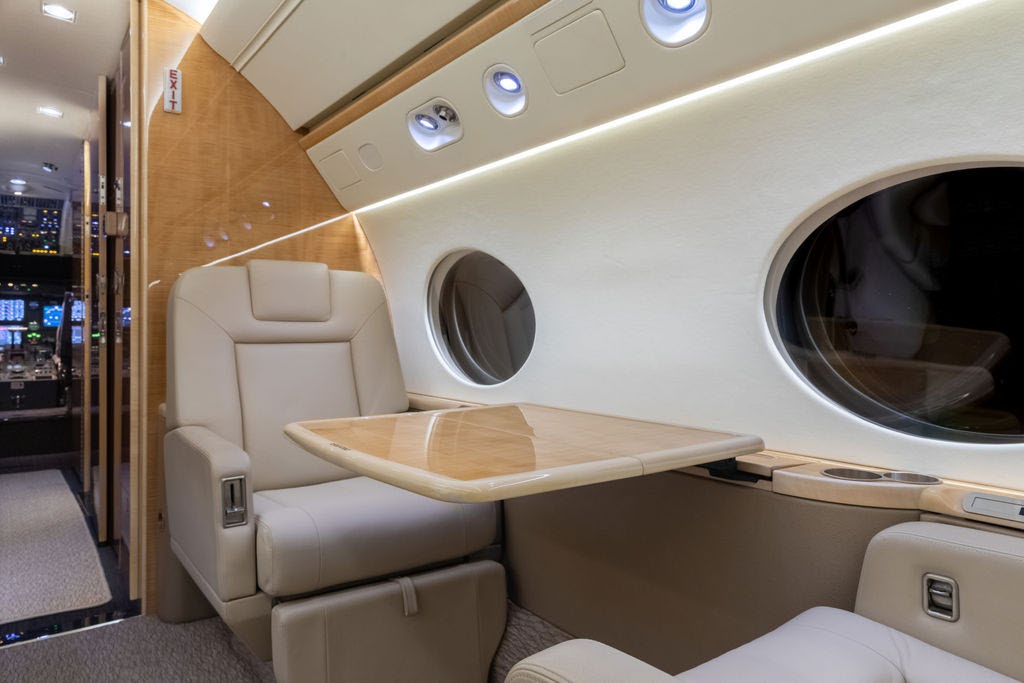

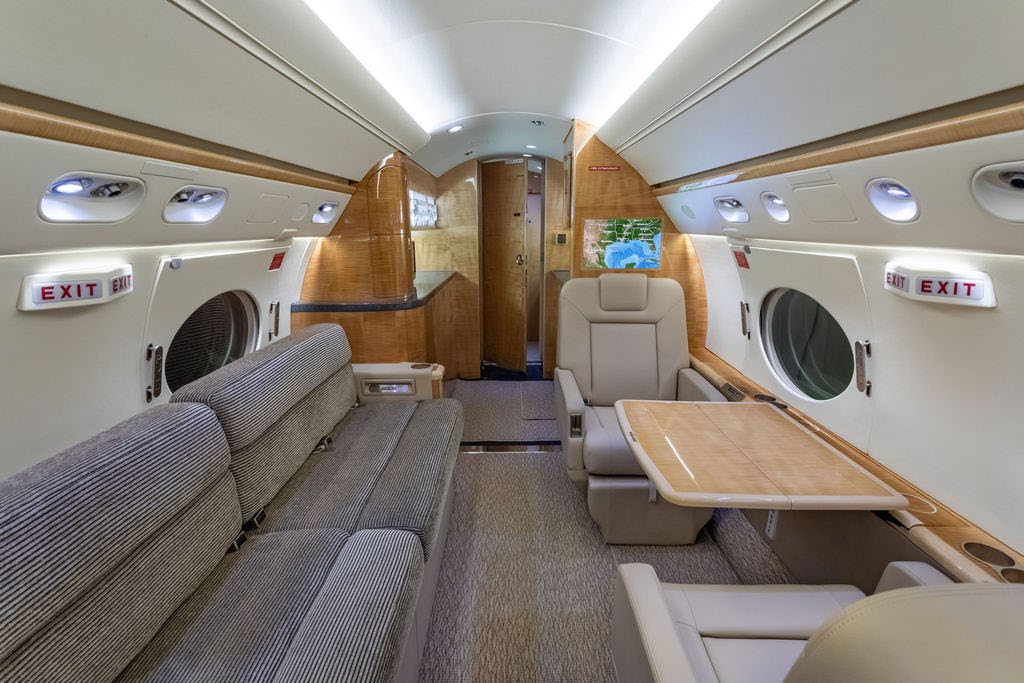

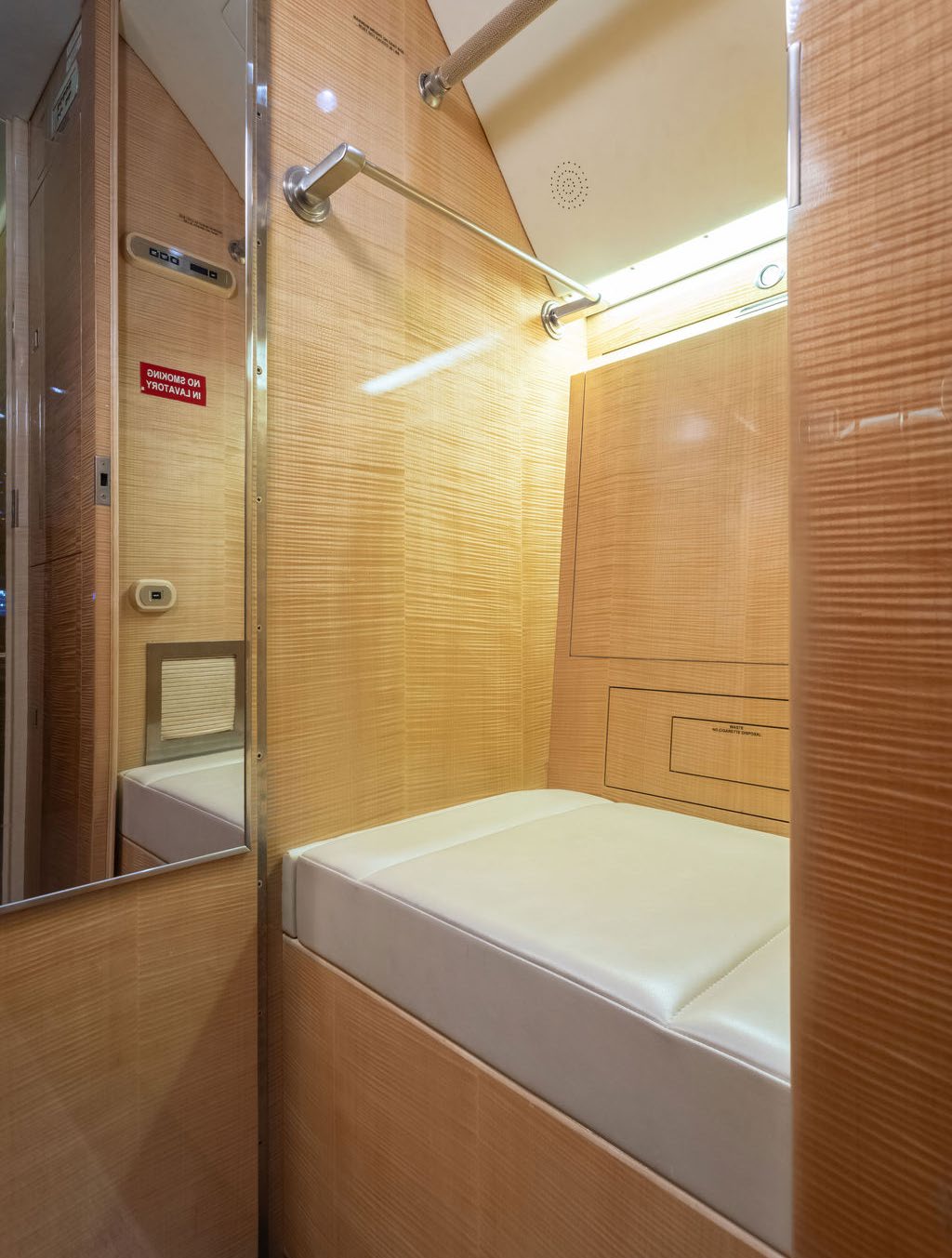

(Interior Refurbishment completed in 2019 by Gulfstream, St. Louis) (Cabin Seats always covered) This beautifully appointed (14) fourteen-passenger cabin offers (3) three distinct seating areas, complemented by a forward crew rest, a dedicated crew lavatory, and a spacious aft galley Forward Vestibule: Forward crew closet / storage area. Forward Crew Lavatory and Forward Crew Rest Area. Forward Cabin: Forward area features 4-place club seats. Mid Cabin: 4-place berthable conference group on the left opposing a right-side credenza. Aft Cabin: 4-place right-side divan and left-side 2-place berthable club. Galley: Full size Aft Galley includes a Microwave Oven, High-Temperature Oven, and a food Chiller. AFT GALLEY DESCRIPTION High Temp Oven Microwave Oven Chiller |
|
| Year Interior: | 2019 |
|

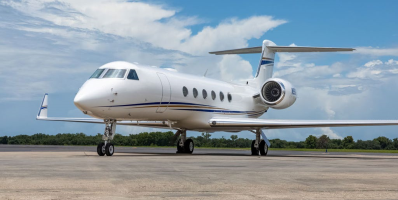

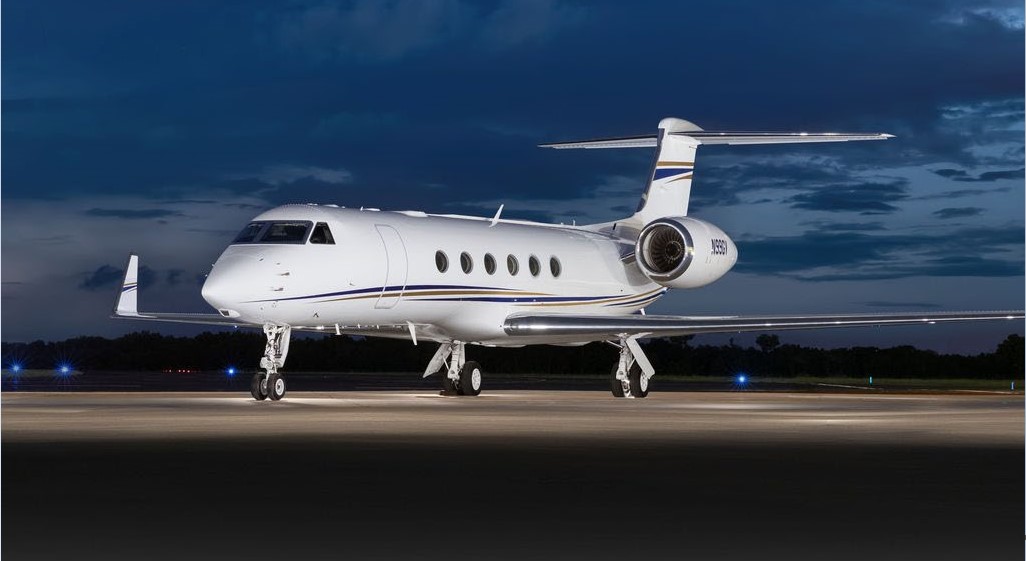

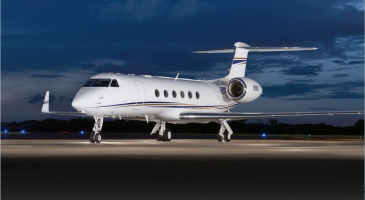

(Full Paint completed in 2022 by West Star Aviation, Grand Junction) (Ceramic Coating applied July 2023) Overall Matterhorn White with Las Vegas Gold and Daytona Blue Stripes |
|
| Year Painted: | 2022 |
| Other Info | |
|
Inspection Status: Engines on Rolls Royce Corporate Care APU on Honeywell MSP Gold Honeywell MSP Avionics CMP Maintenance Tracking Program Airworthiness Date: August 2002 In Service Date: August 2003 Maintained per MSG-3 Maintenance Program Operated Part 91 INSPECTIONS (MSG-3) LAST COMPLETED NEXT DUE 12 Month Checks May 2025 April 2026 24 Month Checks April 2024 April 2026 48 Month Checks October 2022 October 2026 72 Month Checks December 2020 December 2026 96 Month Checks July 2019 July 2026 144 Month Checks May 2015 May 2027 |
|
| Brochure: | View Brochure |
