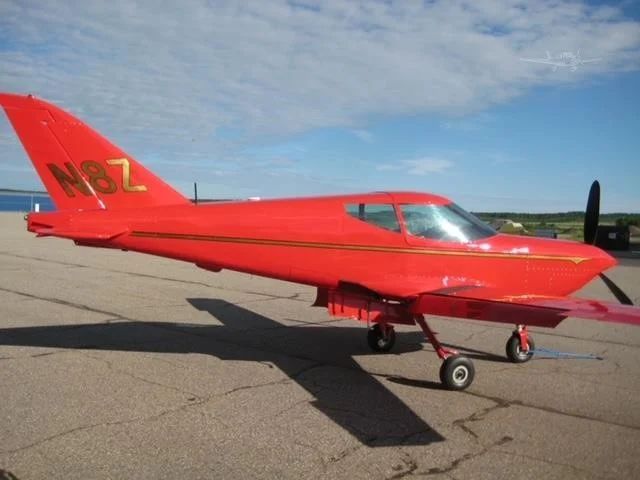

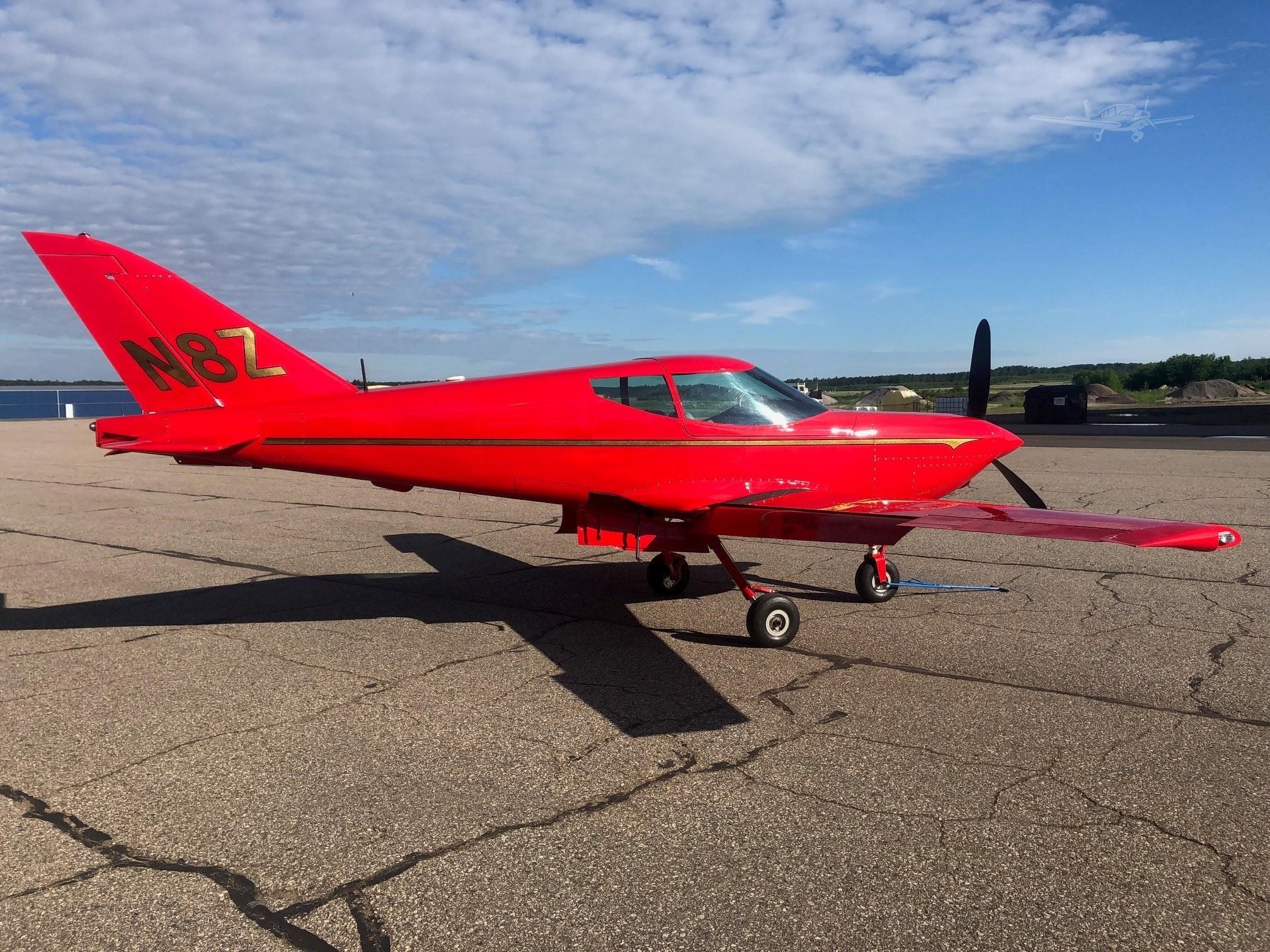

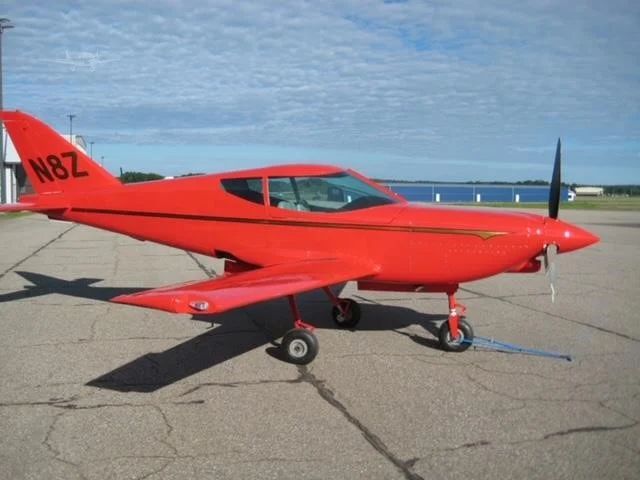

1998 Swearingen SX-300
| Overview | |
| Listing Status: | Inactive |
| Price: | N/A |
| Offered By: | Aircraft Canada |
| Registration: | N8Z |
| S/N: | JONAS-0008 |
| Home Airport: | KIMT (Airnav) |
| Location: |
Kingsford, Michigan United States
|
| Airframe | |
| Total Time: | 364.8 Hours |
| Avionics | |
|

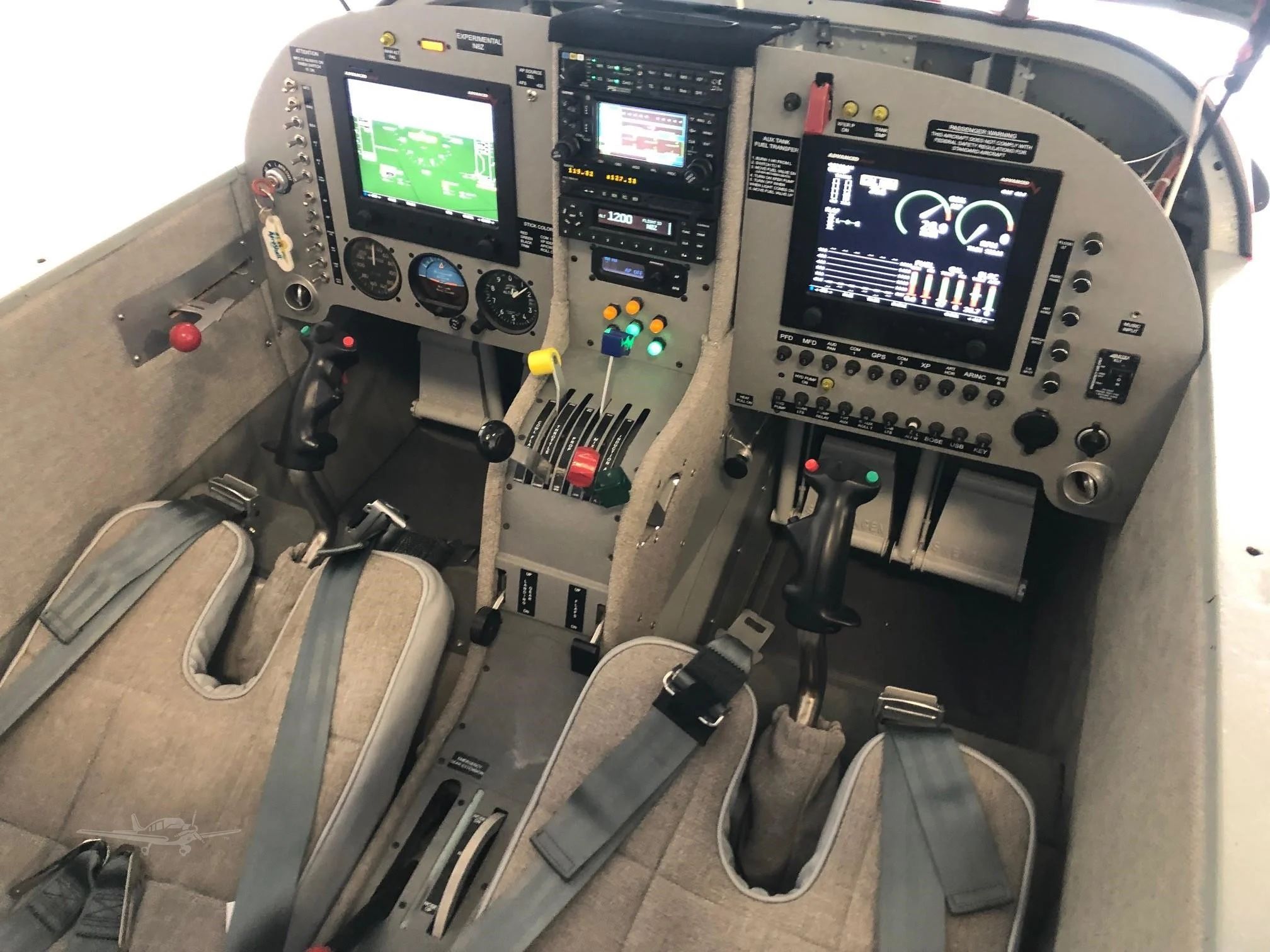

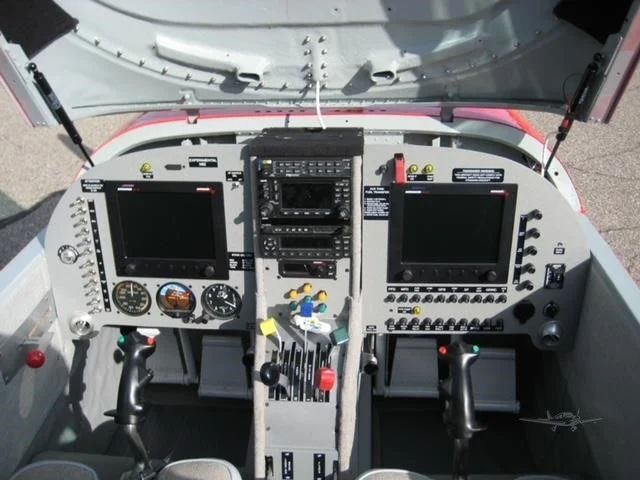

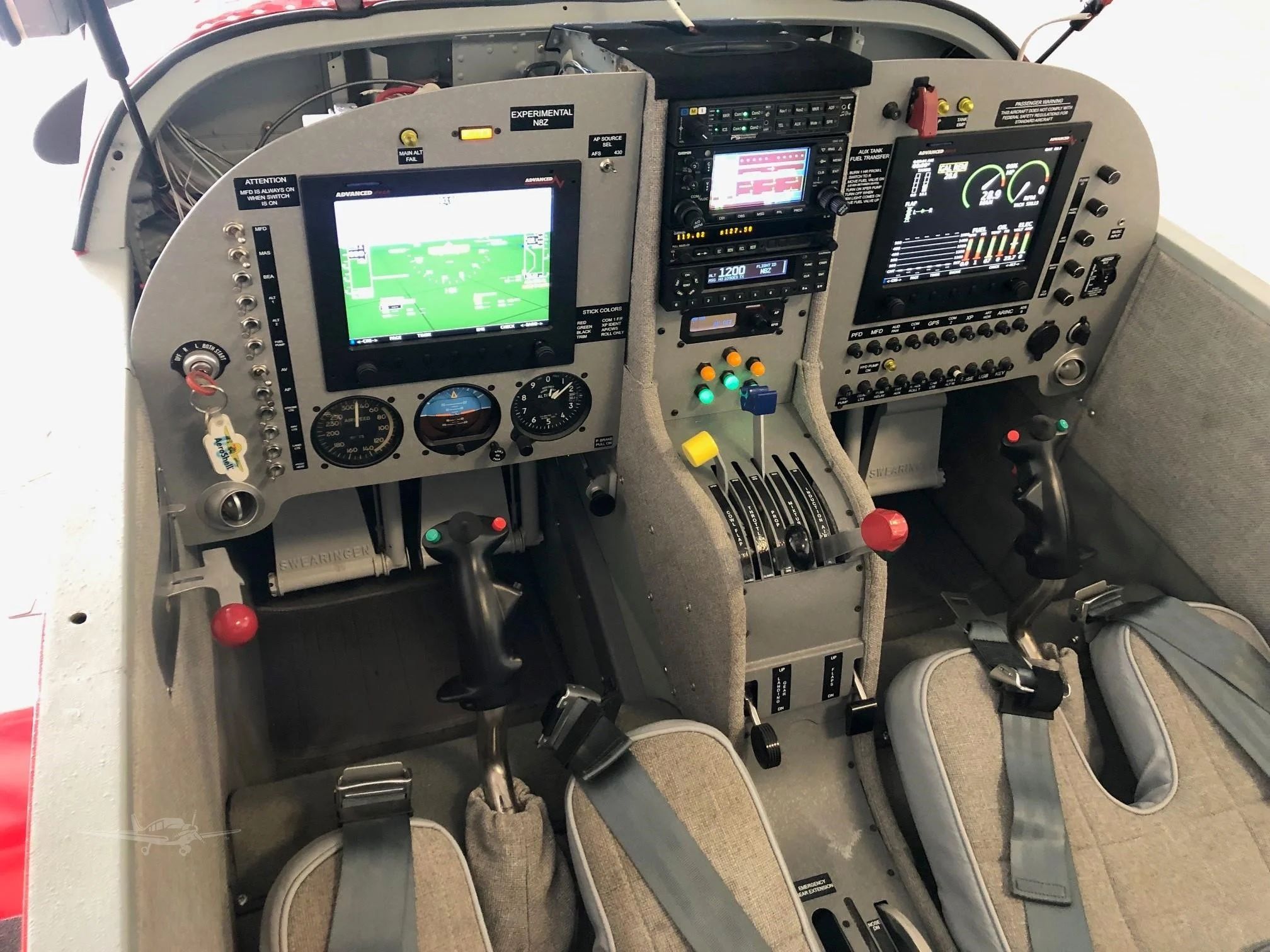

New Advanced Flight Systems 4500 series EFIS and engine monitoring system New PMA 8000 audio panel Factory rebuilt GNS-430 New GTX-335 transponder SL-40 #2 nav A.F. TruTrak flat pack auto pilot ADS-B in and out All new switches, circuit breakers, light dimmers Standard mic and phone jacks, plus powered Bose plugs New Artex 345 ELT |
|
| Additional Equipment | |
|

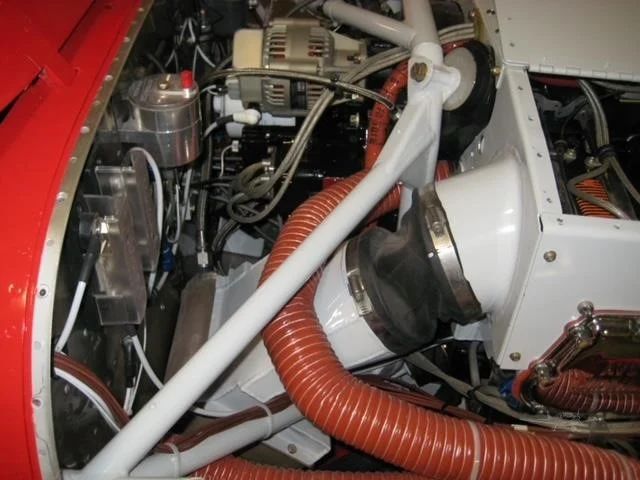

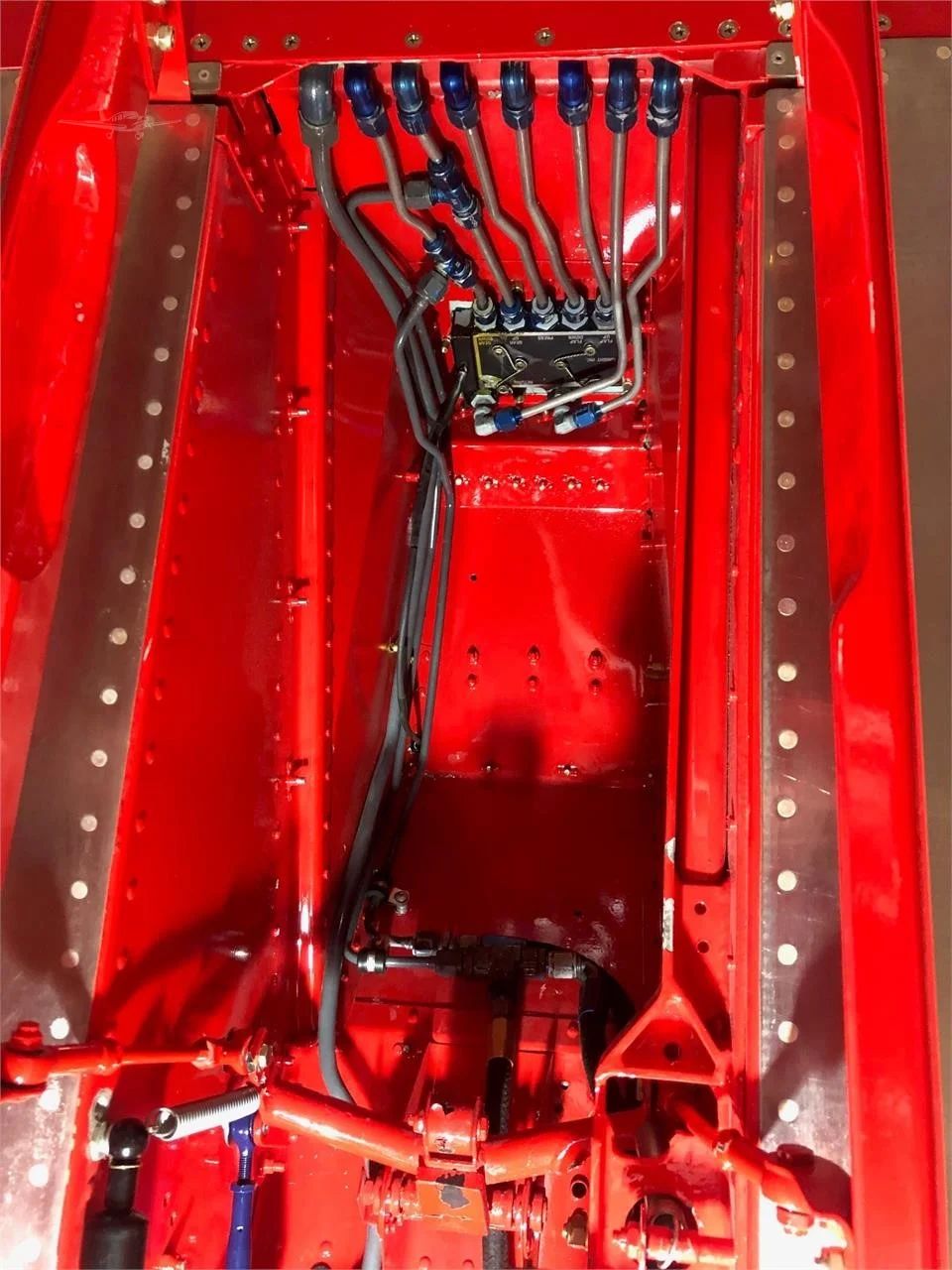

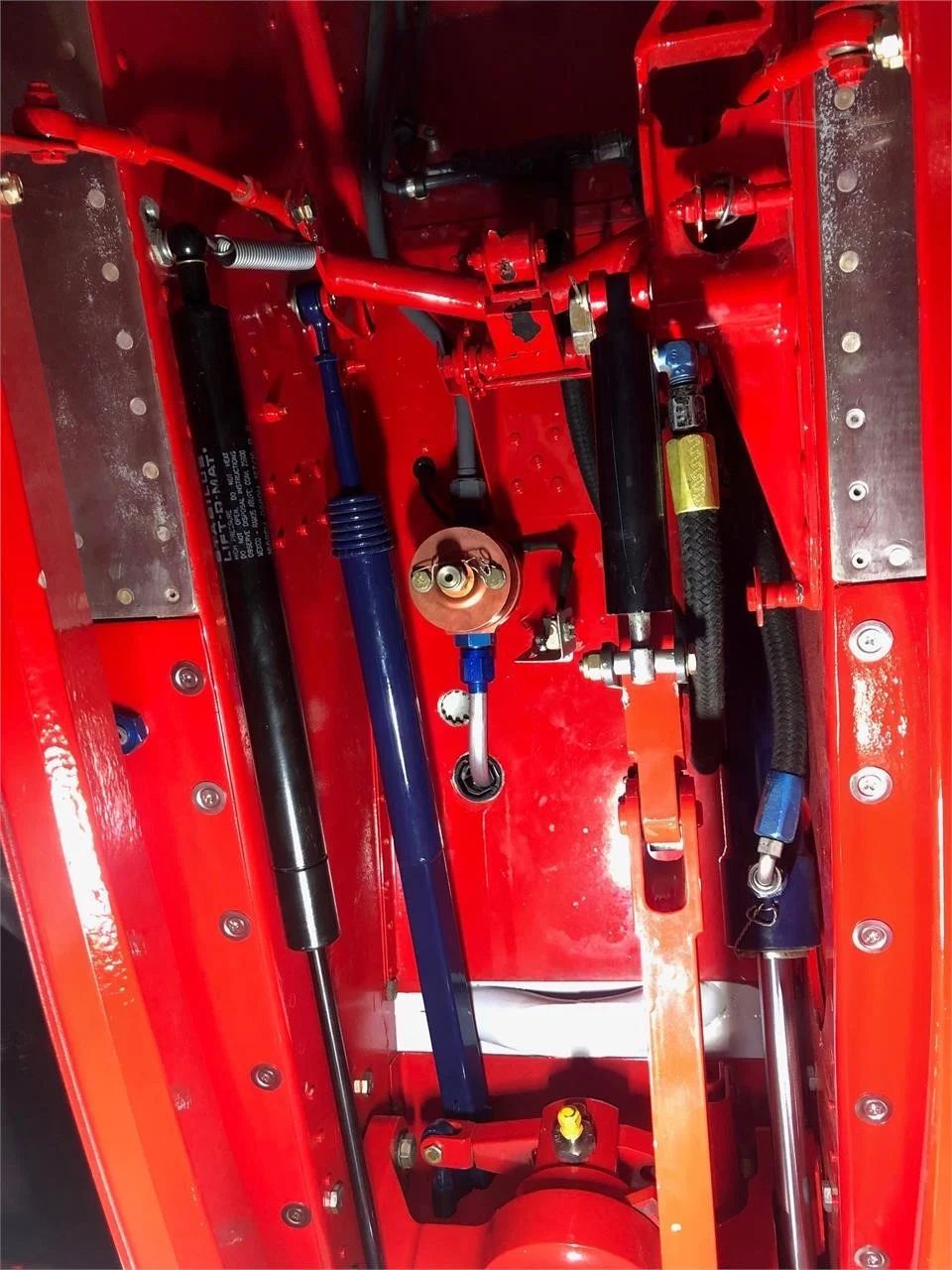

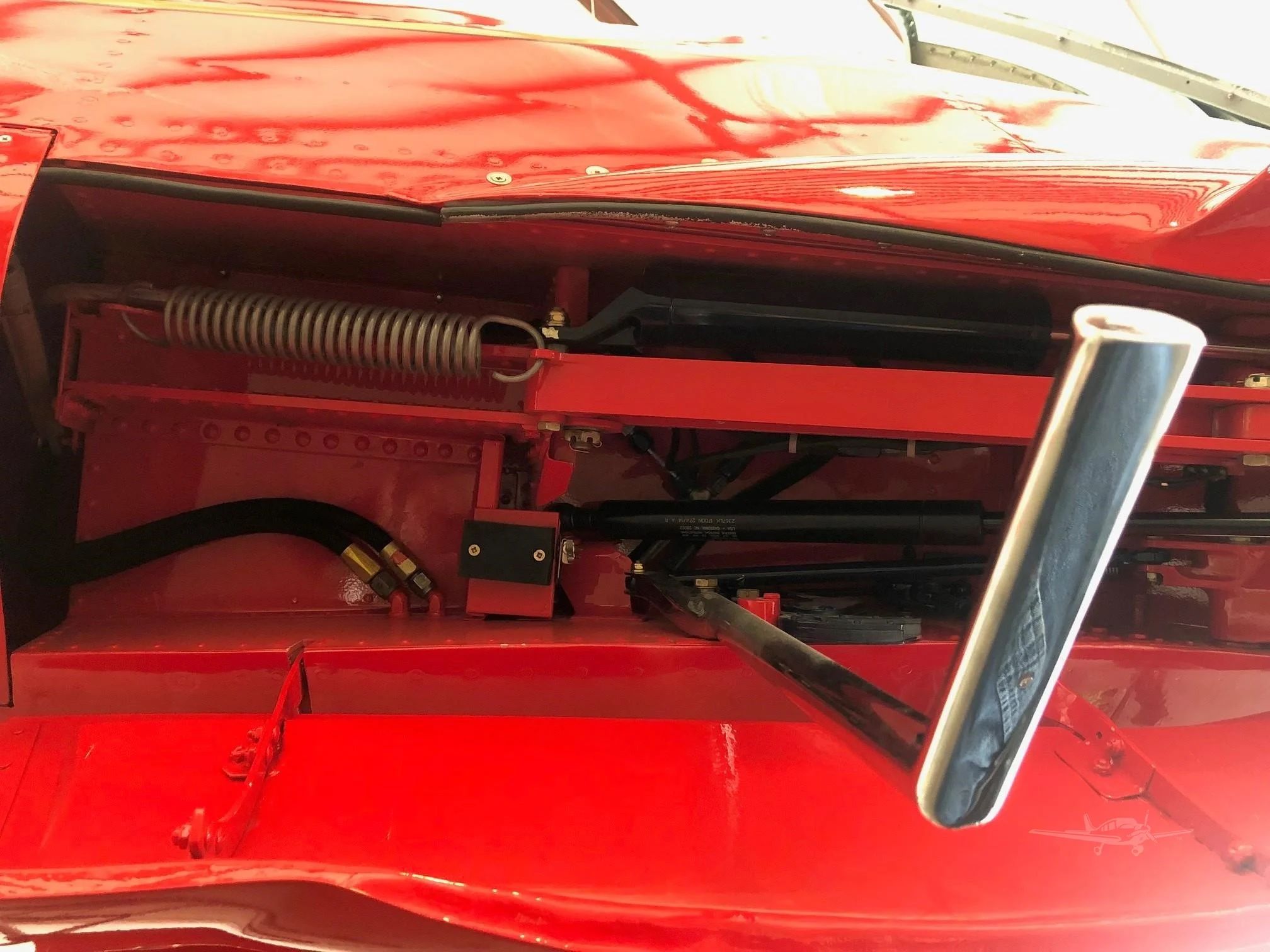

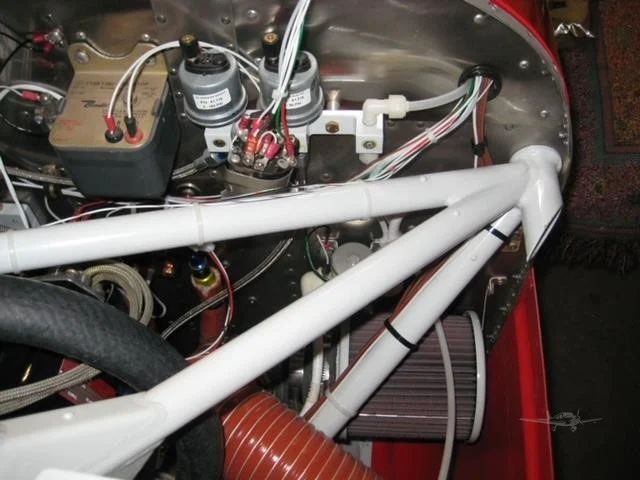

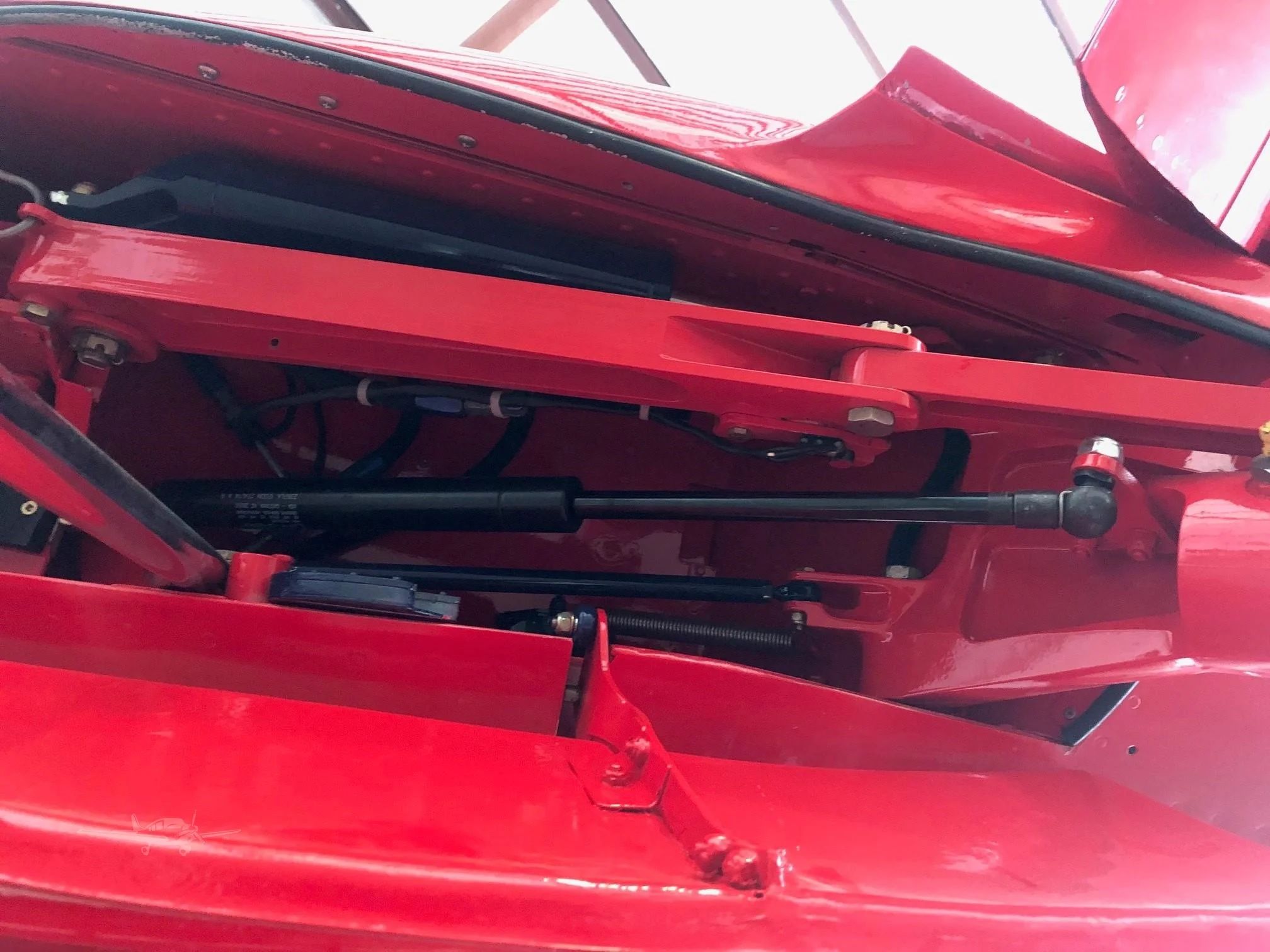

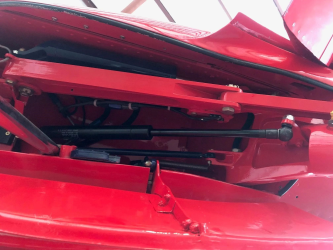

This aircraft has completed a total refurbishment. It was completely disassembled almost to the point of being down to rivets. Essentially the only parts that remained in the fuselage were good control cables and aluminum hydraulic lines. All parts were stripped of old paint (including the engine mount) and properly prepared for new finish. The following is a partial list of work completed: All new hydraulic, oil and fuel hoses All new wiring (28 volt system) New main gear trunnions New high pressure main gear gas springs New nose gear gas spring and all new gear coil springs Redesigned canopy latching system New LED nav/strobe lights, beacon and interior lighting New B&C back-up alternator system New B&C main alternator regulator Overhauled fuel ignition servo Overhauled magnetos Overhauled propeller (8/8/2013) New tires and brakes Main landing gear overhauled by Doug Poli The engine was overhauled by Barrett Performance Aircraft Dynamometer test: 322 HP @ 2700 RPM 334 HP @ 2850 RPM Easily removable auxiliary fuel tank in baggage compartment (approximately 12 gallons). Pump control on upper right panel. Note: It would be difficult to find an aircraft refurbishment more extensive than this one. Countless hours attending to details and maintenance. This aircraft includes a COMPLETE empennage kit (partially built) and wing kit. |
|
| Engines & Props | |
|

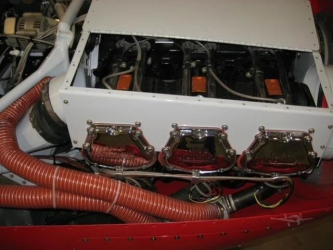

Engine Notes Lycoming IO-540-K1A5 Exp. TTSN: 2601.55 Compressions during July 2023 annual: #1-74/80, #2-75/80, #3-74/80, #4-74/80, #5-74/80, #6-76/80 Prop Notes Hartzell HC-F3YR--1E TSOH: 539.5 |
|
| Engine Hours: | 538.1 SMOH |
| Interior & Exterior | |
| Exterior Paint: PPG Delfleet Hot Rod Red | |
| Other Info | |
| Special Type: | Experimental |
