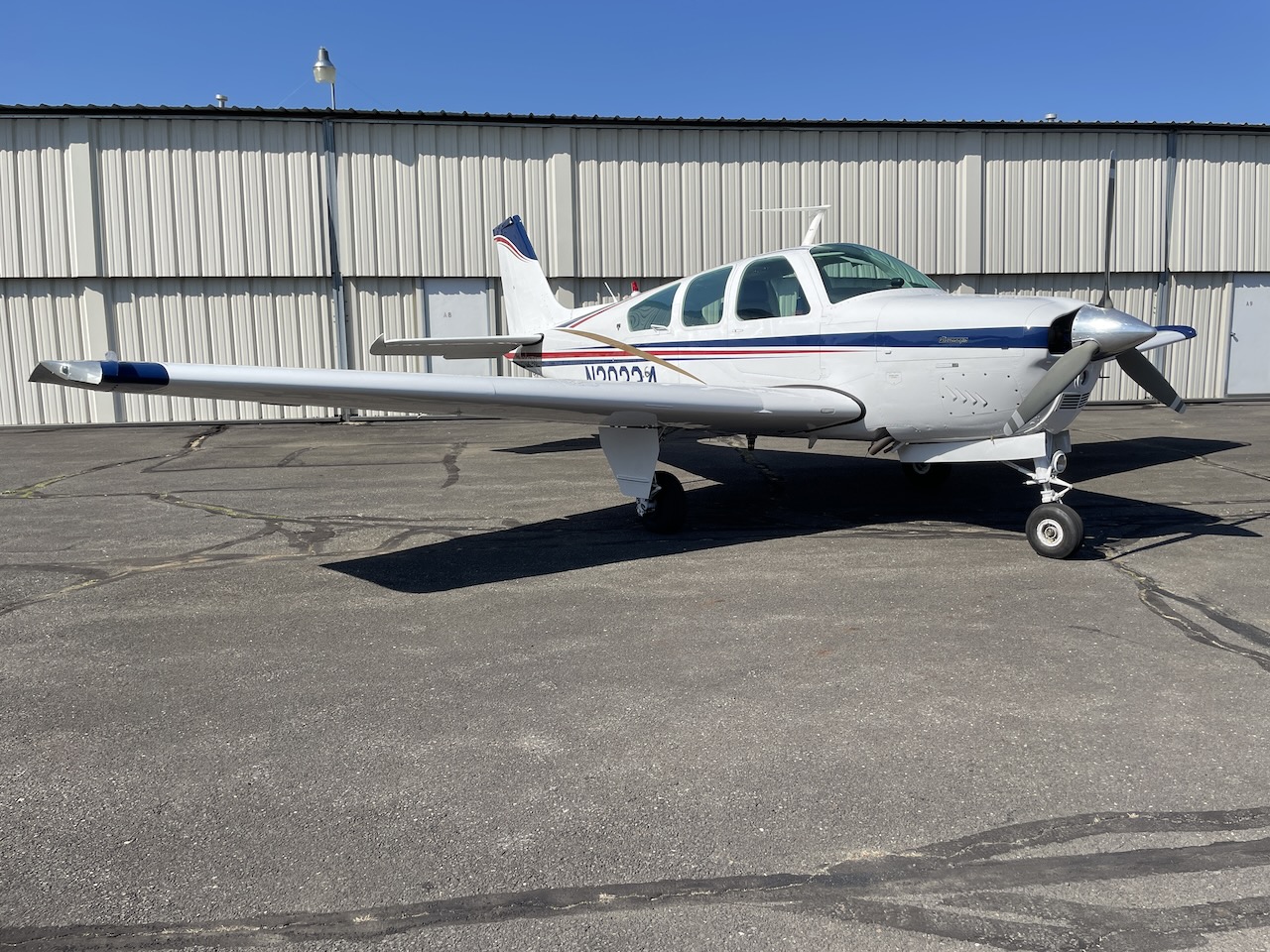

1978 Beechcraft Bonanza F33A
| Overview | |||||||||||||||
| This is an exceptional and pampered IO-520 powered Beech F33A Bonanza that has just undergone completion with a new Garmin glass panel, a new interior and multiple airframe upgrades. The airplane has a near mid-time engine with excellent compressions and will serve well as a family traveler or a great business aircraft for a discerning buyer. | |||||||||||||||
| Price: |
$324,900 USD
|
||||||||||||||
| Offered By: | Aircraft Associates | ||||||||||||||
| Registration: | N20234 | ||||||||||||||
| S/N: | CE-801 | ||||||||||||||
| Home Airport: | KAAO (Airnav) | ||||||||||||||
| Location: |
Wichita, Kansas United States
|
||||||||||||||
| Days Active: | 56 days ago | ||||||||||||||
| Airframe | |||||||||||||||
| W&B 3,400 GW, 2,305 EW, 79.26" CG, 1,095 Useful Load | |||||||||||||||
| Total Time: | 2,375 Hours | ||||||||||||||
| Avionics | |||||||||||||||
|
ADS-B Garmin GTX 345 ADS-B I/O Transponder Audio Panel Garmin 350 Bluetooth Audio Panel Autopilot Garmin GFC 500 w/ Pitch Trm and Yaw Damper Digital Instrument #1 Garmin G5 Digital AI Digital Instrument #2 Garmin GEA 24 Digital Interface to G3 Engine Management JPI EDM 930 GPS #1 Garmin GTN 650xi IFR WAAS GPS/Nav/Comm GPSS Garmin GFC 500 Integrated Flight Control System Intercom Garmin GMA 350 Bluetooth Audio Panel Nav/Comm Garmin GI 255 NavComm PDF/MFD Garmin G3X Touch Transponder Garmin GTX 345 ADS-B I/O Transponder Accessories Avionics Master, Pilot Yoke TXP Ident Button |
|||||||||||||||
| Additional Equipment | |||||||||||||||
|
Standard Model Data - F33A Dimensions Height 8 ft 3 in, Wing Span: 33 ft 6 in, Length: 26 ft 8 in, Cabin Height: 50 In, Cabin Width: 42 In, Cabin Length: 10 ft 1 In, Cabin Door: 37" Wide x 36" High, Wheel Size 6.00 x 6 Operating Weights Max Ramp Wt: 3,500 lbs, MaxT/O Wt: 3,500 lbs, Max Landing Wt: 3,500 lbs, Empty Wt : 2,322 Lb, Fuel Capacity: 74 Gal Usable (444 lbs), Useful Load: 1,178 Lb, Payload (Full 74 Gal Fuel: 734 lbs, Max Baggage Wt (lbs): 270 Wing Area/Loading Area 181 sf, Loading 19.3 lbs/sf w/o Tip Tanks, XX.X lbs/sf w/ Tip Tanks Power Loading 11.6 lbs/hp w/o Tip Tanks, XX.X lbs/hp w/ Tip Tanks Oil Capacity 12 Qt Fuel Capacity Gal Total: 80, Gal Usable: 74 (444 lbs), 104 Gal Usable w/ 15 Gal Tip Tanks (624 lbs), 114 Gal Usable w/ 20 Gal Tip Tanks (684 lbs) Baggage Compartment Volume: 35 cu ft, Max Weight Capacity: 270 lbs Standard Performance - F33A Distances T/O Ground Roll: 1002 ft, Takeoff Distance Over 50 ft Obstacle: 1,769, Landing Distance: 763 ft, Landing Distance Over 50 ft Obstacle: 1,324 ft Performance Normal Cruise: 172 kts, Rate of Climb: 1,167 fpm (SL) Other 3-Blade Prop, 3 Point Strobes, 4-Place Intercom, 100 Amp Alternator, Fifth Seat, Aileron Trim, Fuselage Air Scoop, Avionics Master Switch, Battery Tender, Brackett Air Filter, C&D Window Inserts, Cargo Straps, Color Control Knobs, Copilot Window Vent, Cowl Plugs, Dual PTT Switches, Dual Yoke, Dual GS, Eagle Fuel Drains, Electric Trim, Tanis Engine Heater, Extended Baggage, GAMIs, Gear Mirrors, Ground Power Plug, Headrests, Large Baggage Door, LED Landing & Taxi Lights, Music Input, Oil Quick Drain, Polished Spinner, Rosen Visors, Pitot Heat, Sheepskins, Shoulder Harnesses, Standby AI & Altimeter, Strobe Beacon, Vertical Card Compass, Walker Air Skeg, Yoke ID Button Standard Performance - F33A Speeds Max Speed Vne: 196 kts, Max Structural Cruise Vno: 167 kts, Flaps Approach / Max Extension Speeds Vfe: 154/123 kts, Landing Gear Extension Vlg: 154 kts, Stall Speed Vs: 59 kts, Stall Speed Vso: 57 kts, Maneuvering Speed Va: 134 kts, Best Rate Of Climb Vy: 95 kts, Best Angle Vx: 80 kts, Cruise Climb: 107 kts Range / Service Ceiling 890 nm / 18,500 ft |
|||||||||||||||
| Engines & Props | |||||||||||||||
|
Engine Continental IO-520-BB, S/N 274801-R, 285 HP, 1,700 TBO, Compressions 78/78/78/78/78/77 over 80 in 12/23. Propeller Hartzell Model PHC-C3YF-1RF/F84684-6R 3-Blade Propeller, S/N EE2369A, 93.9 SPOH in 2018 by Maxwell Aircraft Service, Inc. in Minneapolis, MN |
|||||||||||||||
| Engine Hours: | 935 SMOH | ||||||||||||||
| Interior & Exterior | |||||||||||||||
|
Five (5) Seats Original Vinyl Sidewalls, Wheat Colored Fabric Seats w/ Light Tan Vinyl Trim, Rated 6/10 |
|||||||||||||||
| Moon Dust w/Blue Metallic and Gold Metallic (1991), Rated 7/10 | |||||||||||||||
| Other Info | |||||||||||||||
|
Inspection Status: Annual Due 10/31/25 IFR Checks Due 02/28/26 |
|||||||||||||||
| Damage: | No known current or historical damage | ||||||||||||||
| Aircraft Documents | |||||||||||||||
|
|||||||||||||||
